HPC for AI & Environmental impact of computation

Download as slides 📥

Introduction to AI applications

AI Renaissance: Neural Networks

• 2012: AI renaissance brought by increased data availability and computation ressources

  • breakthroughs in multiple domains
  • many innovations: algorithms, specialized processors, optimizations

• Most systems use neural networks:

  • Training (stochastic gradient descent + backpropagation)
  • Inference (forward pass)

• For both, the bottleneck is matrix multiplication

Objectives

• Explain why dense linear algebra (GEMM) dominates NN compute
• Core SGEMM kernel ideas and common optimizations
• Use Roofline model to identify bottlenecks

Short introduction to Neural Networks

• Neural networks are composed of layers of neurons
• Each neuron computes a weighted sum of its inputs followed by a non-linear activation function \(f\)

\[ \begin{bmatrix} x_1 \\ x_2 \\ \vdots \\ x_n \end{bmatrix} \rightarrow \textbf{neuron} \rightarrow y \]

\[ y = f\left(\sum_{i} w_i x_i + b\right) \]

• Common activation functions: ReLU, sigmoid, ...

• Perceptron: single layer of neurons (1958 Rosenblatt)

Architectures

• Different architectures for different tasks:

  • Fully connected layers
  • Convolutional layers
  • Recursive layers
  • Transformers (attention mechanism)



Inference

• Inference: use the trained model to make predictions on new data

• Forward pass through the network:

  • For each layer, compute the weighted sum and apply activation function

  • The weighted sum is a matrix-vector multiplication for fully connected layers and convolutions (often implemented as GEMM).

Two layer network

Layer 1:

• \(X\): input data [K × B] → K features, B batch size
• \(W_1\): weights [H × K] → H hidden units
• \(b_1\): bias [H × 1]

Layer 2:

• \(W_2\): weights [O × H] → O outputs
• \(b_2\): bias [O × 1]

ReLU \(f(x) = max(0,x)\), \(f'(x) = 1_{x>0}\)

Forward inference

• Layer 1 Pre-activation hidden (GEMM, H×K × K×B → H×B)

\[Z_1 = W_1 · X + B_1\]

• Layer 1 Activation - ReLU (elementwise)

\[H = f(Z_1)\]

• Layer 2 Output pre-activation (GEMM, O×H × H×B → O×B)

\[Z_2 = W_2 · H + B_2\]

• Layer 2 Activation - ReLU (elementwise)

\[Y = f(Z_2)\]

• Forward is dominated by the two large GEMMs Z1 and Z2.

Training

• Training: adjust weights \(W\) and biases \(b\) to minimize a loss function \(L\) over a training dataset

• Use backpropagation to compute gradients on each layer (chain rule)

• Example with one neuron and MSE loss:

\[ y = f(w_1 x_1 + w_2 x_2 + b) \]

\[ L = (y - y_{true})^2 \]

\[ \frac{\partial L}{\partial w_1} = \frac{\partial L}{\partial y} \cdot \frac{\partial y}{\partial w_1} = 2(y - y_{true}) \cdot f'(w_1 x_1 + w_2 x_2 + b) \cdot x_1 \]

• Backward pass can be efficiently implemented using automatic differentiation and matrix multiplications.

Stochastic Gradient Descent

• Use stochastic gradient descent to update weights:

\[ w_1 \leftarrow w_1 - \eta \cdot \frac{\partial L}{\partial w_1} \]

\[ w_2 \leftarrow w_2 - \eta \cdot \frac{\partial L}{\partial w_2} \]

\[ b \leftarrow b - \eta \cdot \frac{\partial L}{\partial b} \]

• \(\eta\) is the learning rate
• Repeat for many epochs over the training dataset

Training

1. Forward pass to compute \(H\) and \(Y\)
2. Compute loss \(L(Y, Y_{true})\)
3. Backward pass to compute gradients.

The backward pass is also dominated by GEMMs.

Frameworks

• Popular frameworks: TensorFlow, PyTorch, JAX, ...

• High-level APIs for defining models, automatic differentiation, GPU acceleration

# Simple 2-layer NN in PyTorch
import torch
import torch.nn as nn

class Net(nn.Module):
    def __init__(self):
        super().__init__()
        self.fc1 = nn.Linear(28*28, 512)
        self.fc2 = nn.Linear(512, 10)

    def forward(self, x):
        x = torch.flatten(x, 1)
        x = torch.relu(self.fc1(x))
        x = torch.relu(self.fc2(x))
        return x

SGEMM

Single-precision General Matrix-Matrix multiplication (SGEMM):

\[ RES = A \times B + C \]

Naive SGEMM implementation (pseudocode)

// Initialize RES to C
for (i = 0; i < M; i++)
    for (j = 0; j < N; j++)
        RES[i][j] = C[i][j];

// Matrix multiply
for (i = 0; i < M; i++) {
    for (j = 0; j < N; j++) {
        for (k = 0; k < K; k++) {
            RES[i][j] += A[i][k] * B[k][j];
        }
}

• FLOPS: \(2 \times M \times N \times K\)
• min. Memory: \(4\) bytes \(\times (M \times K + K \times N + M \times N)\)

Locality issues in naive SGEMM

\[ {\color{green}\text{order in memory} \rightarrow} \]

\[ \begin{bmatrix} \color{red} b_{11} & b_{12} & b_{13} & b_{14} \\ \color{red} b_{21} & b_{22} & b_{23} & b_{24} \\ \color{red} b_{31} & b_{32} & b_{33} & b_{34} \\ \color{red} b_{41} & b_{42} & b_{43} & b_{44} \\ \end{bmatrix} \]

• Stride in accessing B (column-major)

  • Poor spatial locality
  • Difficult to vectorize
  • Cache misses for large matrices (reuse distance too large)

• Low arithmetic intensity: \(\approx 0.5\) FLOP/byte for large matrices

Reordering loops (i,k,j)

• Sums RES[i][j] += A[i][k] * B[k][j]; are independent → reorder loops:

for (i = 0; i < M; i++)
    for (k = 0; k < K; k++)
        for (j = 0; j < N; j++)
            RES[i][j] += A[i][k] * B[k][j];

• A[i][k] does not depend on j → load once, reuse N times

• RES and B accesses are now stride-1 (row-major)

for (i = 0; i < M; i++)
    for (k = 0; k < K; k++) {
        const float temp = A[i][k];
        for (j = 0; j < N; j++)
             RES[i][j] += temp * B[k][j];
        }

• Better spatial locality and easier to vectorize

Vectorization

Inner loop assembly for (i,k,j) ordering with AVX (8 float in a vector):

.loop:                                   # Inner loop
    vmovss  xmm0, DWORD PTR A[i][k]      # Load A[i][k]
    vbroadcastss ymm0, xmm0              # Broadcast scalar to all lanes
    vmovaps ymm1, YMMWORD PTR B[k][j]    # Load B[k][j:j+8]
    vfmadd231ps ymm2, ymm1, ymm0         # Fused multiply-add
    vmovaps YMMWORD PTR RES[i][j], ymm2  # Store RES[i][j:j+8]
    add     j, 8                         # Increment j by 8 (vector width)
    cmp     j, N                         # Compare j with N
    jl      .loop                        # Loop if j < N

Problems with (i,k,j) ordering

• Temporal locality analysis:

  • GOOD: \(A[i][k]\) reused in the inner loop, reuse distance \(1\).
  • MEDIUM : For a given \((i,j)\), each \(RES[i][j]\) revisited once per k. So reuse distance \(K\) (one full row).
    • To keep RES in cache between uses you would need cache \(\ge N \times 4B\)
  • BAD : For a given \((k,j)\), \(B[k][j]\) used once per i. So reuse distance \(K \times N\) (entire B matrix).
    • To keep B in cache between uses you would need cache \(\ge K \times N \times 4B\)

• Still poor temporal locality for large matrices

• Solution: tiling / blocking to increase reuse

Blocking (tiling)

• Idea: operate on sub-matrices blocks that fit in cache

\[ \begin{bmatrix} \textcolor{red}{A_{11}} & A_{12} \\ A_{21} & A_{22} \\ \end{bmatrix} \times \begin{bmatrix} \textcolor{blue}{B_{11}} & B_{12} \\ B_{21} & B_{22} \\ \end{bmatrix} = \begin{bmatrix} \textcolor{red}{A_{11}}\textcolor{blue}{B_{11}} + A_{12}B_{21} & A _{11}B_{12} + A_{12}B_{22} \\ A_{21}B_{11} + A_{22}B_{21} & A_{21}B_{12} + A_{22}B_{22} \\ \end{bmatrix} \]

#define BS 64 // Block size
// Loop over blocks
for (ii = 0; ii < M; ii += BS)
    for (kk = 0; kk < K; kk += BS)
        for (jj = 0; jj < N; jj += BS)

            // Operate on blocks A[ii:ii+BS, kk:kk+BS],
            // B[kk:kk+BS, jj:jj+BS], RES[ii:ii+BS, jj:jj+BS]
            for (i = ii; i < min(ii+BS, M); i++)
                for (k = kk; k < min(kk+BS, K); k++)
                    for (j = jj; j < min(jj+BS, N); j++)
                        RES[i][j] += A[i][k] * B[k][j];

Parallelization

• Each block operation is independent → parallelize over blocks

#pragma omp parallel for collapse(3)
for (ii = 0; ii < M; ii += BS)
    for (jj = 0; jj < N; jj += BS)
        for (kk = 0; kk < K; kk += BS)
            // Block multiplication as before

• Each thread works on its own block → no false sharing
• Synchronization only at the end of the parallel region
• NUMA considerations: pin threads to cores, allocate memory close to threads
• Load balancing: static scheduling usually works well for large matrices

Libraries & autotuners

• Highly optimized SGEMM implementations exist:

  • OpenBLAS, Intel MKL for CPU

  • NVIDIA cuBLAS for GPU

• Implementations use blocking, vectorization, parallelization, and many architecture-specific optimizations

• Libraries are carefully tuned for different sizes and shapes of matrices.

• Autotuners (e.g., ATLAS, TVM, MLKAPS) can generate optimized code for specific hardware and problem sizes.

Roofline model - Definitions

• Hypothesis: performance is limited by either compute or memory bandwidth

  • performance: FLOP/s (vertical axis)
  • memory bandwidth: Bytes/s
  • arithmetic intensity: FLOP/byte (horizontal axis)

• Simple visual model to understand bottlenecks

Roofline model - Bounds

• Compute bound: horizontal line at peak FLOP/s
• Memory bound: sloped line with slope = memory bandwidth
  • \(\frac{\text{Flop/s}}{\text{Flop/Byte}} = \text{Byte/s}\)

Roofline model - SGEMM analysis

• Interactive demonstration and analysis

Environmental impact of computation

Introduction

• Major ecological crisis: French roadmap targets carbon neutrality in 2050 (Stratégie Nationale Bas Carbone).

• Requires a 40% energy consumption reduction.

• HPC part of the solution: modeling and improving complex systems

HPC part of the problem

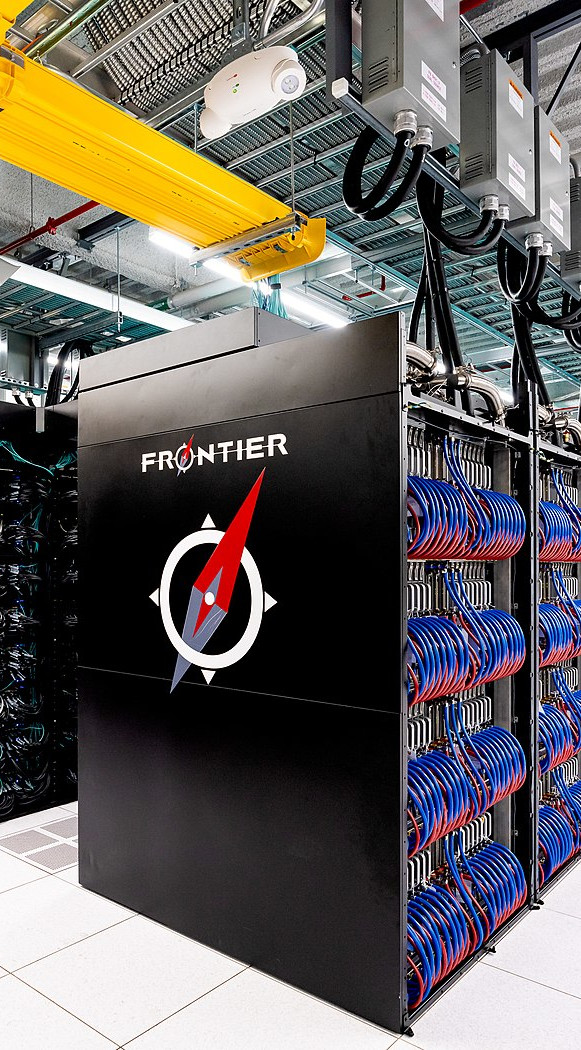

• Frontier system at ORNL

  • More than \(10^{18}\) floating point operations per second

  • Consumes 21MW: the energy of a small town (\(16\,000\) french houses)

Environmental impact of computation

• The ICT sector consumes \(\approx\) 5% of the energy wordwide

• It accounts for 1.8% - 2.8% of emitted GHG [Freitag, 2021]:

  • Accounts for embodied emissions.

  • Shadow energy during the whole life-cycle: mining, fabrication, transportation, recycling.

• GHG emmissions are only one of the sustainability issues

  • rare-earth mining and waste disposal (eg. Agbogbloshie).

    • human-right abuses, health issues, pollution.

• This presentation focus on energy consumption of HPC

What about renewable energies?

• Low-carbon electricity is a limited ressource

• Decarbonation \(\rightarrow\) huge increase in electricity demand

  • Heating, Transportation, Industry

  • Computing will compete for low-carbon electricity.

Energy consumption of HPC

Evolution of processing units [Batten, 2023]

Dennard's scaling 1970-2005

\[\begin{aligned} \text{CMOS Power} & & P = \underbrace{1/2.C.V^2.f}_{P_{\text{dynamic}}} + \underbrace{V.I_{\text{leak}}}_{P_{\text{static}}} \end{aligned}\]

For each generation, transistors dimensions reduced by 30%,

• Voltage and capacitance reduced by 30%

• Frequency increases: \(\times 1.4 \approx 1/0.7\)

• Surface halved: \(0.5 \approx 0.7 \times 0.7\)

• Power halved: \(\Delta P = 0.7 \times 0.7^2 \times 1/0.7 \approx 0.5\)

Power per surface unit remains constant but manufacturers double number of transistors and frequency increases:

• Power efficiency doubles every 1.57 years

• Total power increases

Multicore 2005-2020

• At current scale, leak currents start increasing (\(P_{\textrm{static}} \nearrow\)). Power wall slows Dennard's scaling.

• Computing demand \(\rightarrow\) parallelism and specialization.

• Number of cores increases exponentially since 2005.

• Power efficiency still improving:

  • selectively turning-off inactive transistors;

  • architecture design optimizations;

  • software optimizations.

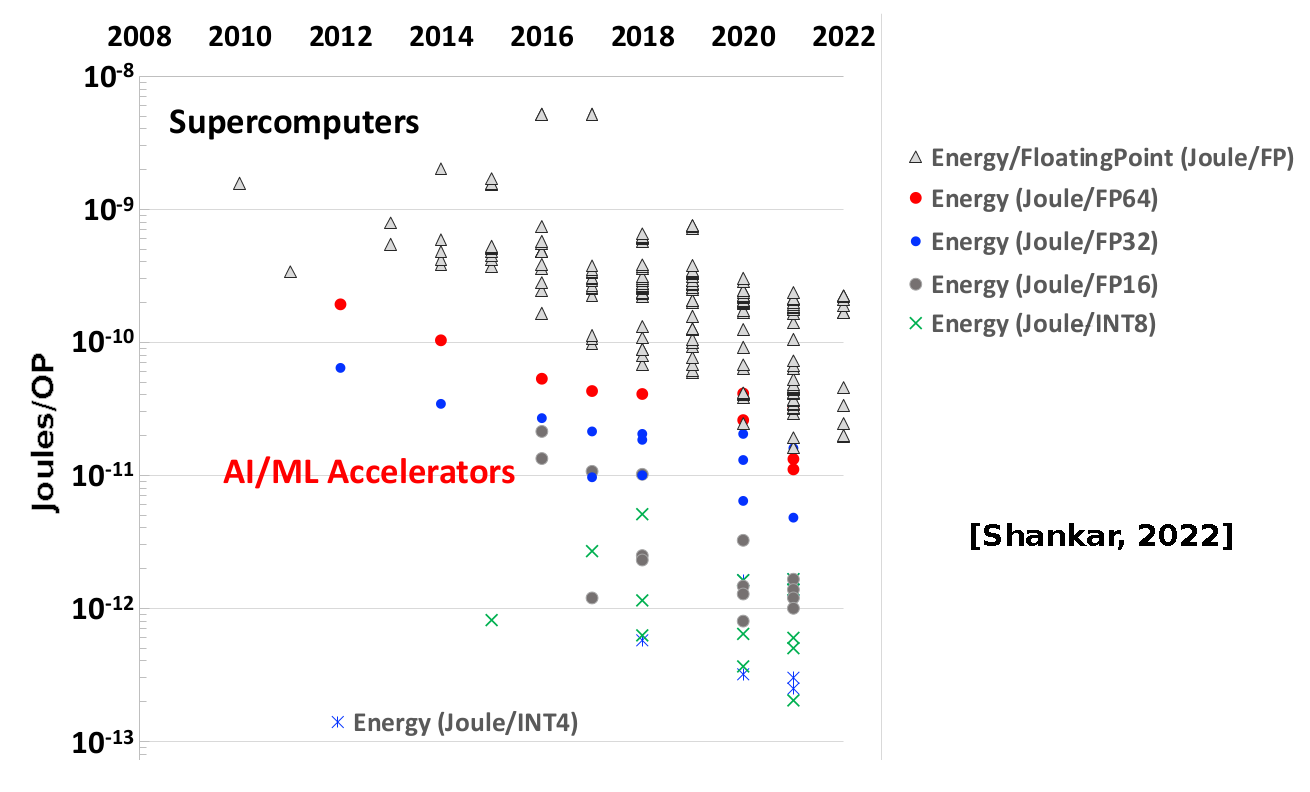

AI Accelerators 2020-2024

• For domain specific applications, such as AI, specialized accelerators are used

  • Memory and compute units tuned for a specific problem (matrix multiplication) ;

  • Faster and better power efficiency: GPU, TPU, FPGA, ASIC.

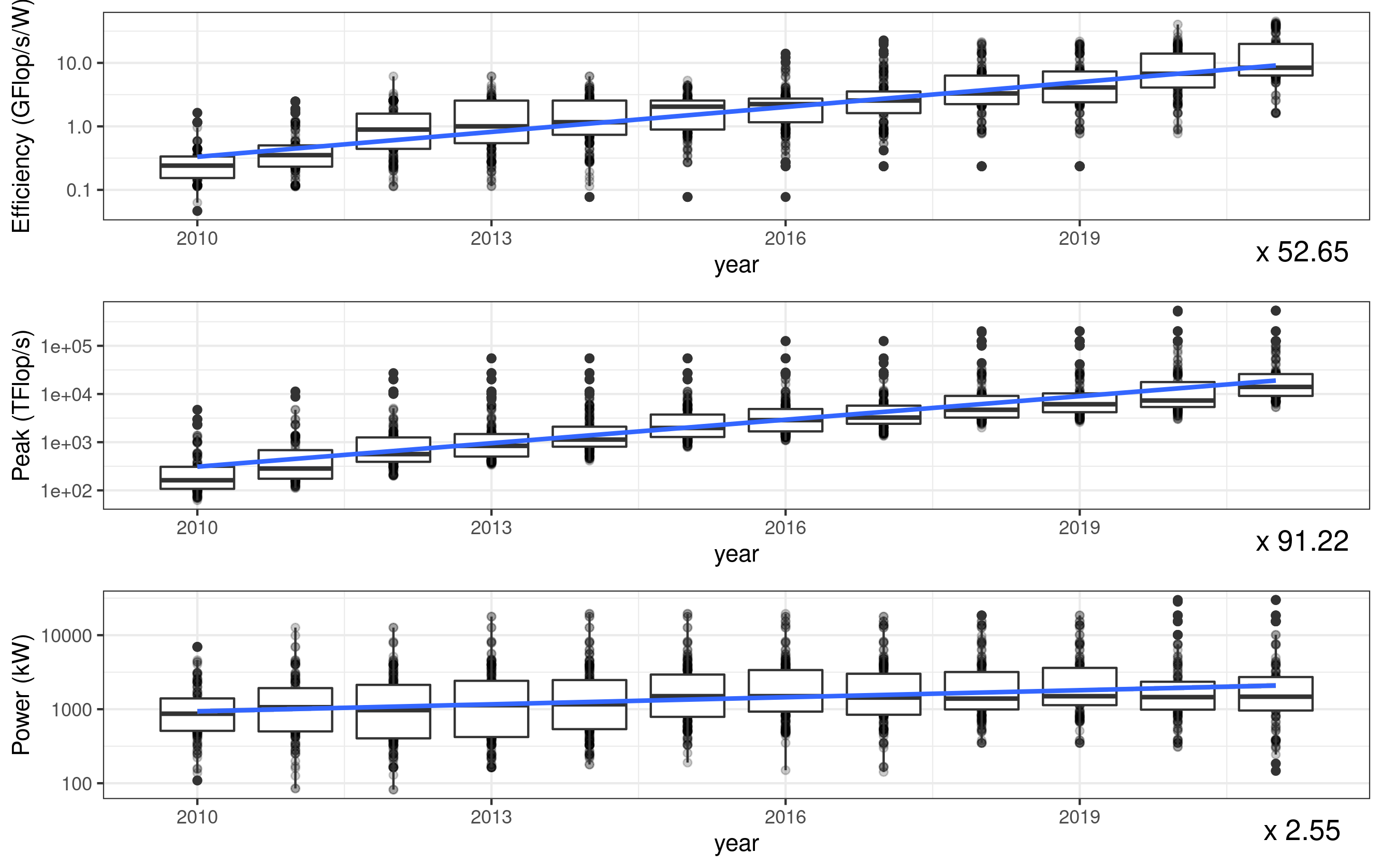

Analysis of TOP-100 HPC systems

Efficiency and Peak computation exponential increase.

Rebound effects

• In 1865, Jevons shows that steam engine improvements translate into increased coal consumption.

• In HPC, efficiency gains contribute to the rising computation demand.

  • net increase of the total power consumption.

• Rebound effects for data-centers [Masanet, 2020]

  • 6% increase in energy consumption from 2010 to 2018\ (255 % increase in nodes).

• Indirect rebound effects: computation advances can contribute to the acceleration of other fields.

AI energy and computation costs

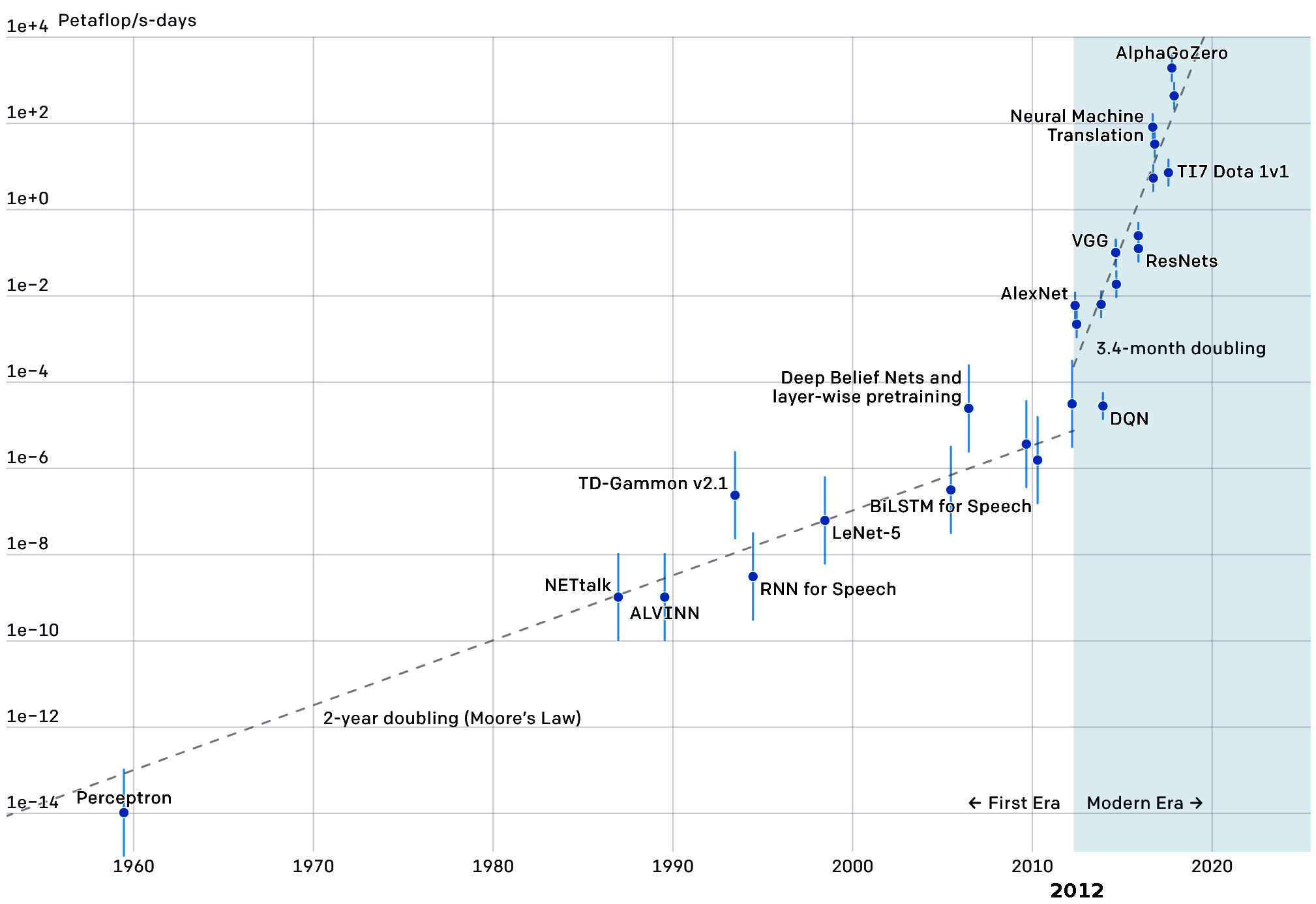

Training cost doubles every 3.4 months [OpenAI, 2020]

Should we study training or inference?

• Training: huge cost but done once

  • GPT3, 175 billion parameters, \(\approx\) 314 ZettaFLOP

  • GPT4, 1.7 trillion parameters

• Inference: millions of users and requests

  • 80-90% cost of a deployed AI system is spend on inference [NVIDIA, 2019]

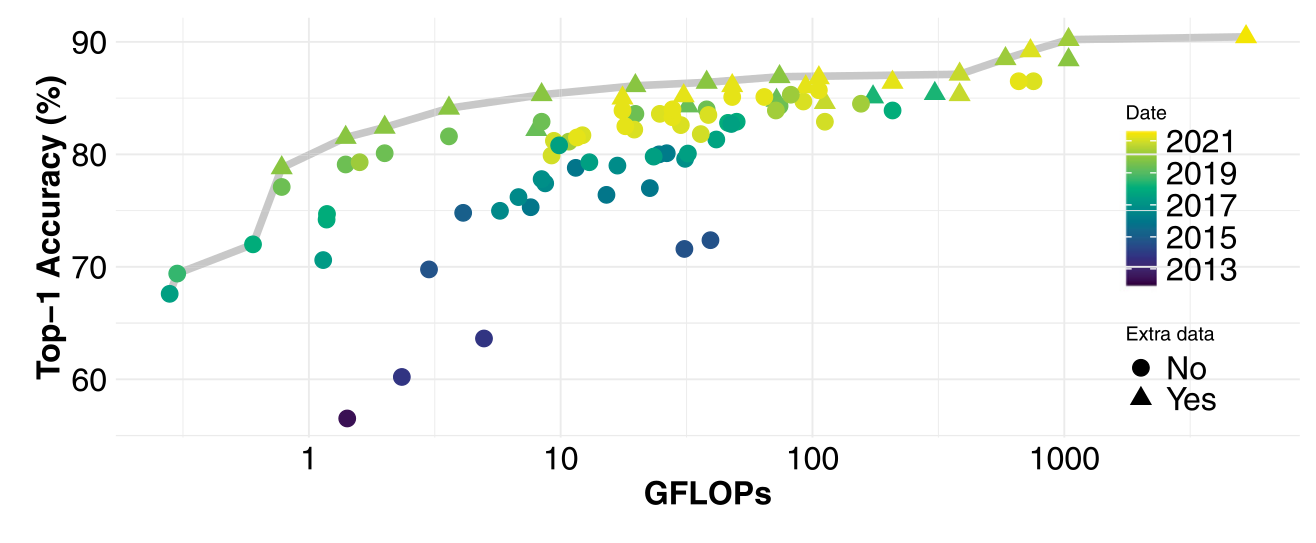

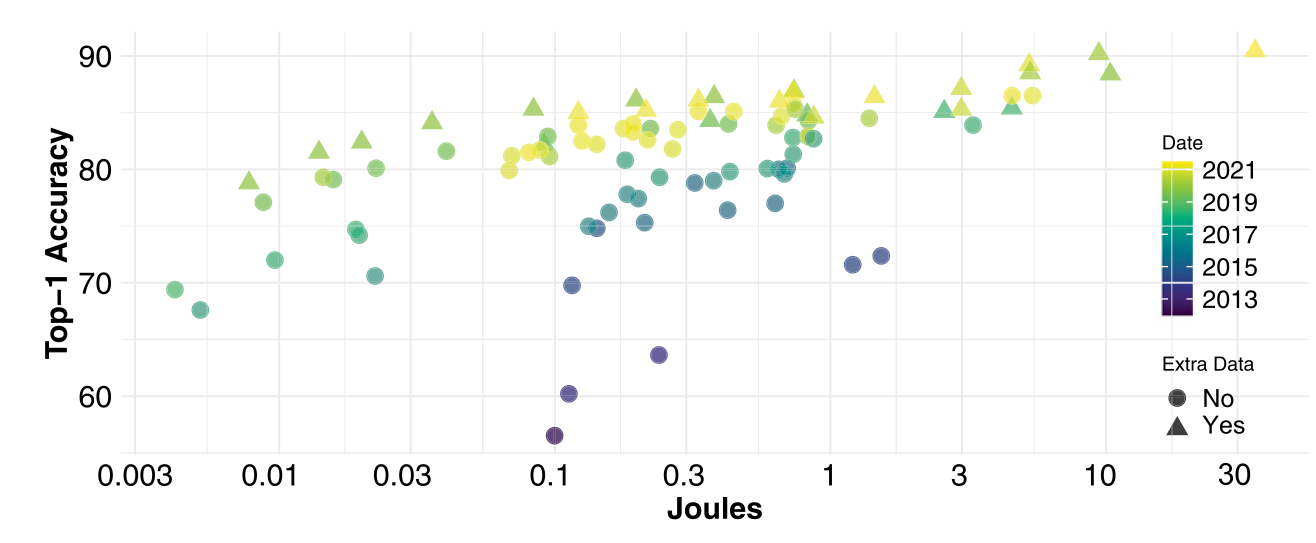

Inference cost - Diminishing returns for computer vision

Exponential increase in compute for linear accuracy gain [Desislavov, 2023 / Schwartz, 2019]

More frugal computing?

Smaller precision / Smaller models for AI

LLM success of smaller models (Llama, Chinchilla) fine-tuned for specific tasks with LoRA.

Tradeoff: Model complexity - Cost - Explainability

• Inference cost grows with model complexity

• Simpler models are often more interpretable

  • Traditional science also prefers simpler models

• DNN not necessary for all tasks

DVFS study of LU decomposition

• Knights Mill 72 cores
• Intel MKL dgetrf
• \(n \in [1000,3000]\)
• RAPL estimation

(Thomas Roglin, M1 UVSQ/INTEL internship 2023)

Save energy by computing slower: 1GHz

When accounting for the whole system

• Model: RAPL + 40W
• System power dominates at low frequencies

Race to idle: 2.6 GHz compute faster and turn off machine

Need for an interdisciplinary discussion

• AI / HPC can contribute towards sustainability (eg. acceleration of weather forecast models) ... but its energy cost must be reduced

• Efficiency:

  • Improve hardware and software

  • Use smaller models / smaller precision

  ... subject to rebound effects

• Frugality in computing:

  • Balance computation cost vs. outcomes for each task

  • Choose the right sized model

  • Assess the environmental impact

Exemple: e-health solution in Tanzania [d'Acremont, 2021]

Treatment of febrile children illnesess in dispensaries.

• IMCI: Paper-based decision tree WHO

• e-POCT CART tree tailored to real data on a standalone tablet

  • Final CART tree easy to interpret and manually checked

  • Randomized-trial \(\rightarrow\) better clinical outcomes and antibiotic prescription reduction

• Sophisticated AI that continuously collects patient data and adapts the algorithm ?

  • Increase in hardware and computation costs.

  • Loss in explainability and verification of the algorithm.

References - HPC for AI applications

• S. Boehm Optimizing, How to Optimize a CUDA Matmul Kernel

References - Environmental impact of computation

• Jones, Nicola (2018) ‘How to stop data centres from gobbling up the world’s electricity’. Nature, 561(7722), pp. 163–167.

• Freitag, Charlotte, Berners-Lee, Mike, Widdicks, Kelly, Knowles, Bran, et al. (2021) ‘The real climate and transformative impact of ICT: A critique of estimates, trends, and regulations’. Patterns, 2(9), p. 100340. online

• Masanet, Eric, Shehabi, Arman, Lei, Nuoa, Smith, Sarah and Koomey, Jonathan (2020) ‘Recalibrating global data center energy-use estimates’. Science, 367(6481), pp. 984–986.

• Schwartz, Roy, Dodge, Jesse, Smith, Noah A. and Etzioni, Oren (2019) ‘Green AI’. arXiv:1907.10597

• Amodei, Dario, Hernandez, Danny, Sastry, Girish, Clark, Jack, et al. (2018) ‘AI and compute. OpenAI’. https://openai.com/blog/ai-and-compute/

• D'Acremont presentation: https://youtu.be/oKcy_cY0QOw
