Experimental Design, Profiling, and Performance/Energy Optimization¶

Plot Example - Intro¶

In the following slides, you will be shown a series of plots; mainly taken from the PPN course reports of previous students.

For each plot:

Try to understand what is represented
Explain what you observe
Give a definitive conclusion from the data shown

Raise your hands when ready to propose an explanation.

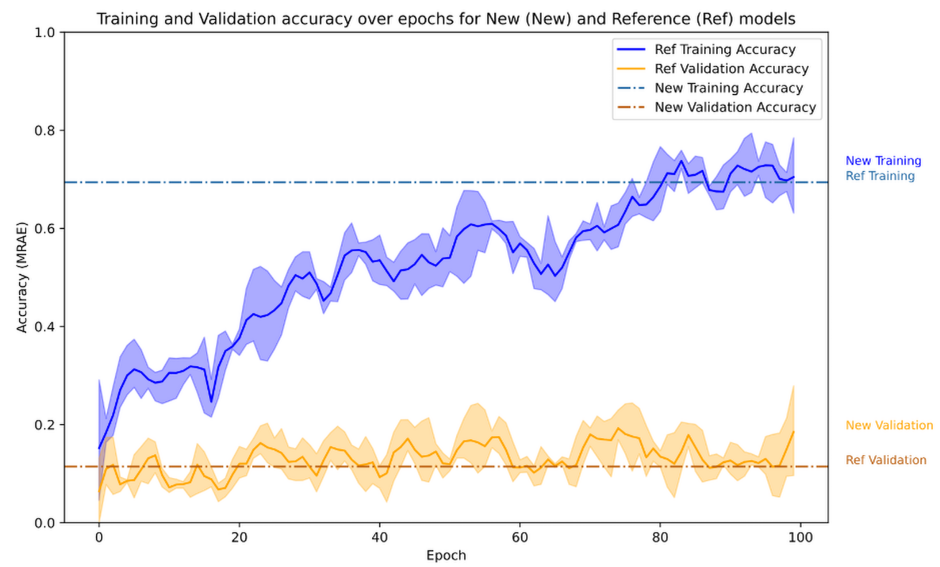

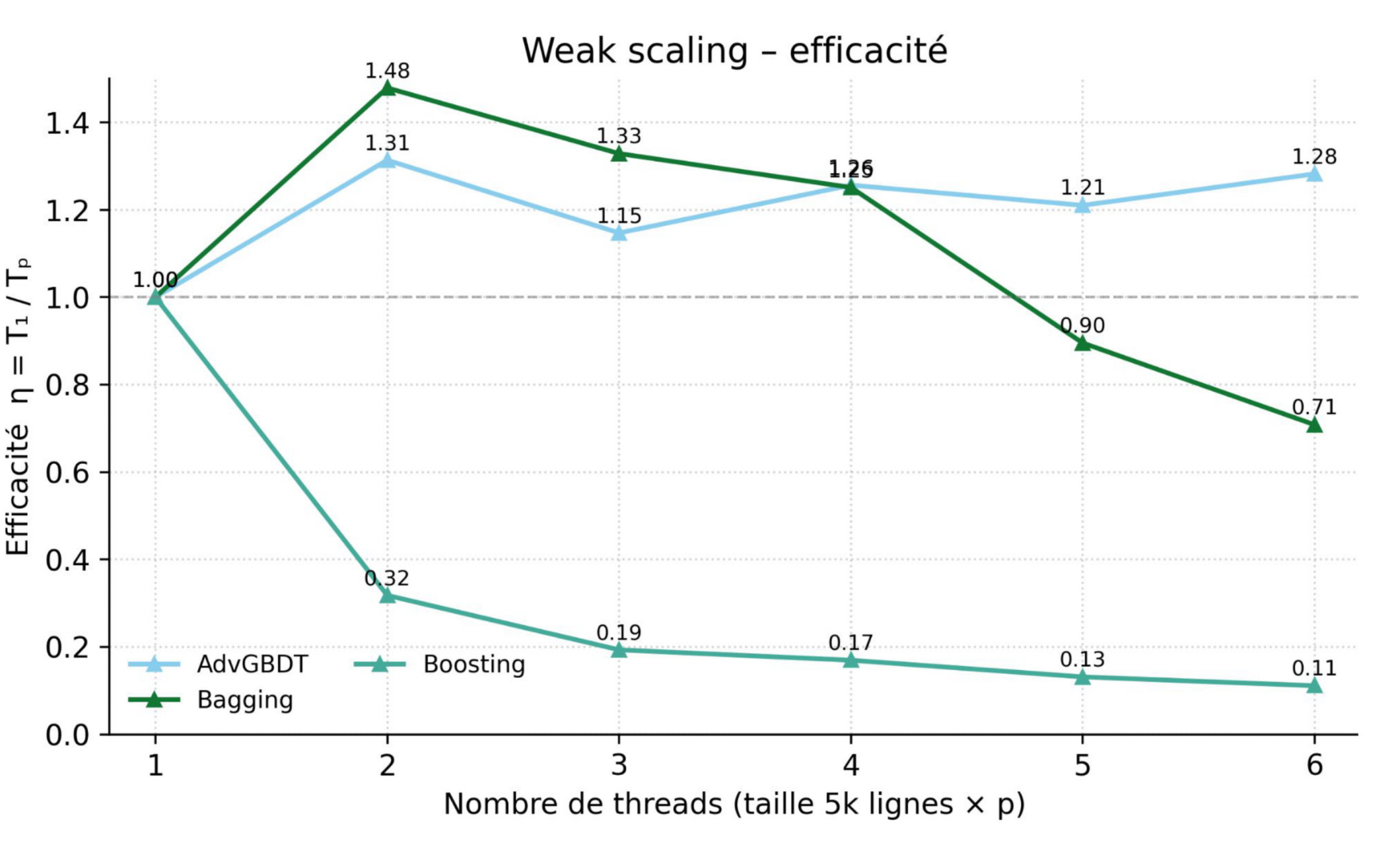

Plot Example (1)¶

**PPN Example** - (No Caption)

PPN Example - (No Caption)

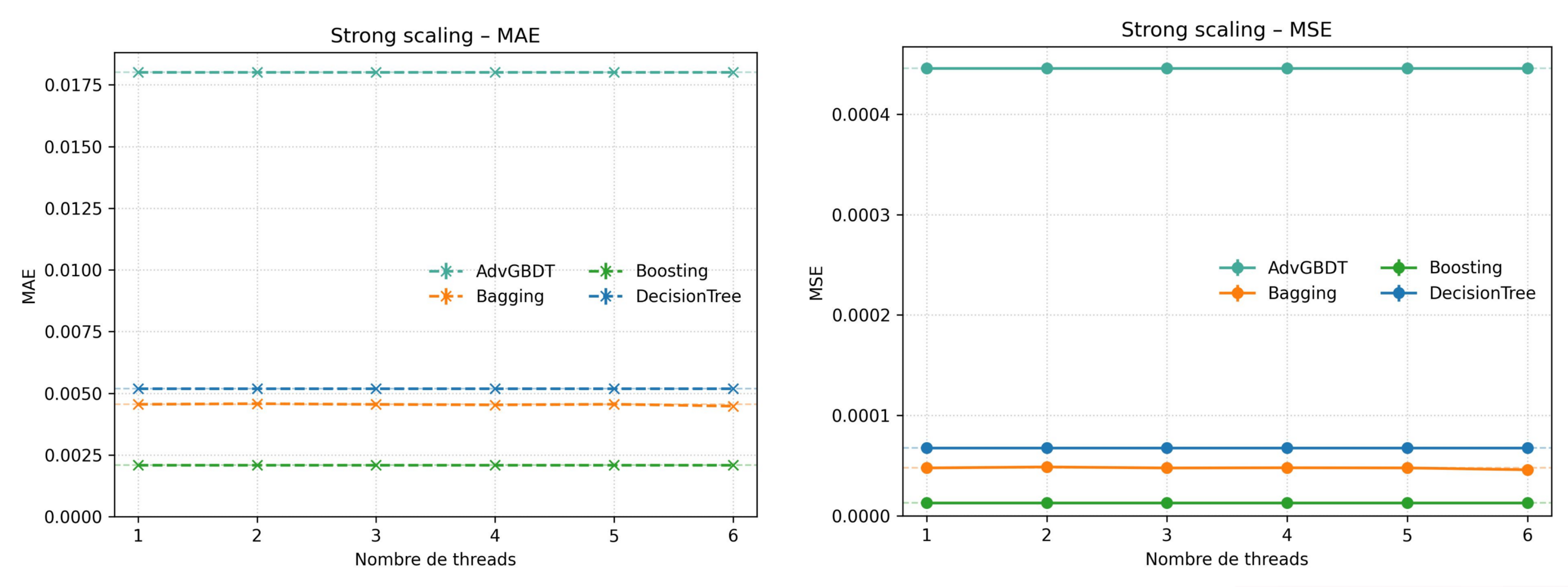

Plot Example (2)¶

**PPN Example** - (No Caption)

PPN Example - (No Caption)

Plot Example (3)¶

**PPN Example** - (No Caption)

PPN Example - (No Caption)

Plot Example (4)¶

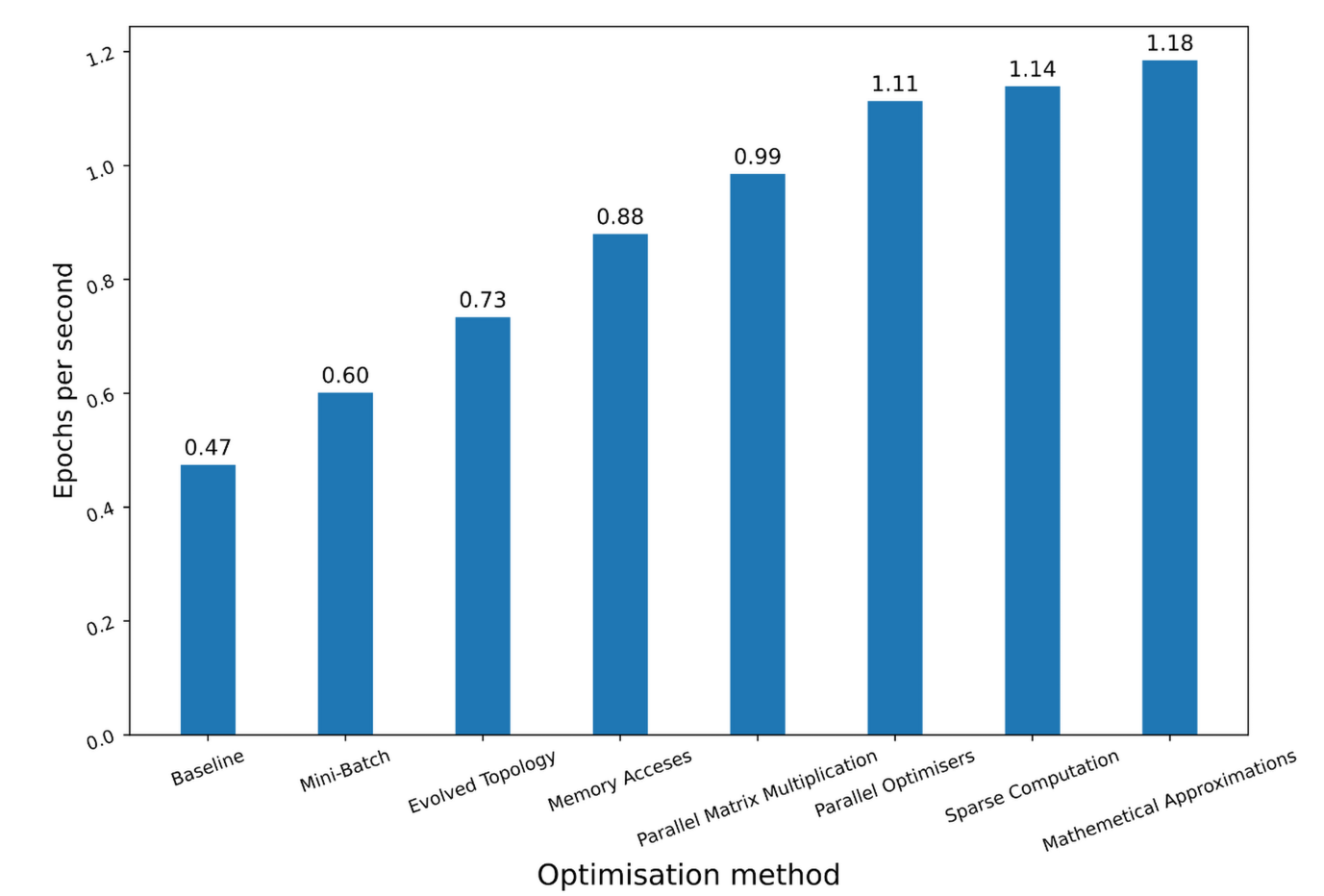

**PPN Example** - "Récapitulatif des optimisations faites"

PPN Example - "Récapitulatif des optimisations faites"

Plot Example (5)¶

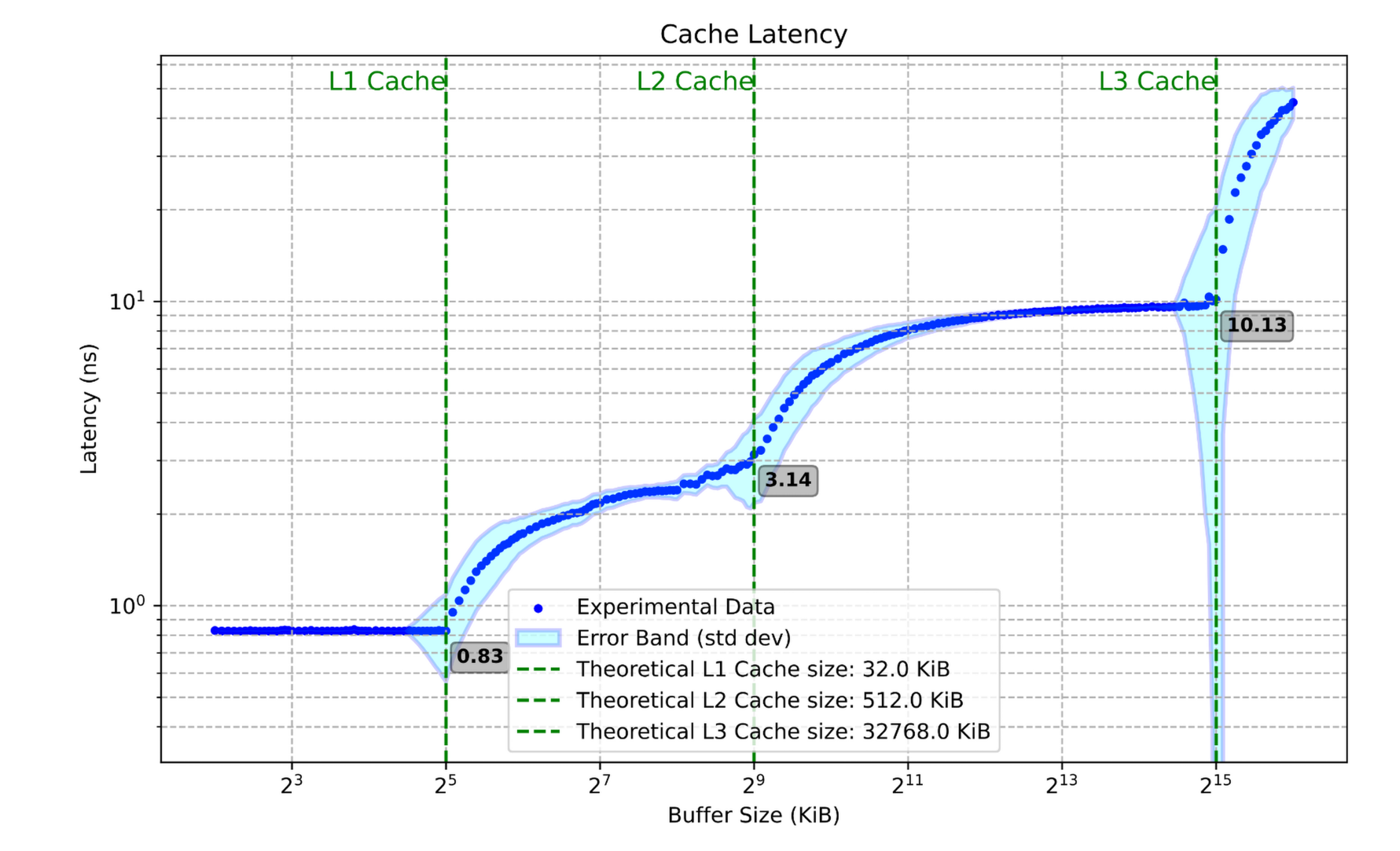

**PPN Example** - "Nouveau tracé de la latence cache"

PPN Example - "Nouveau tracé de la latence cache"

Plot Example (6)¶

$**Prof Example** - (KNM): (a) Speedup map of GA-Adaptive (7k samples) over the Intel MKL hand-tuning for dgetrf (LU), higher is better. (b) Analysis of the slowdown region (performance regression). (c) Analysis of the high speedup region. $3,000$ random solutions were evaluated for each distribution.$

Prof Example - (KNM): (a) Speedup map of GA-Adaptive (7k samples) over the Intel MKL hand-tuning for dgetrf (LU), higher is better. (b) Analysis of the slowdown region (performance regression). (c) Analysis of the high speedup region. $3,000$ random solutions were evaluated for each distribution.

Plot Example (7)¶

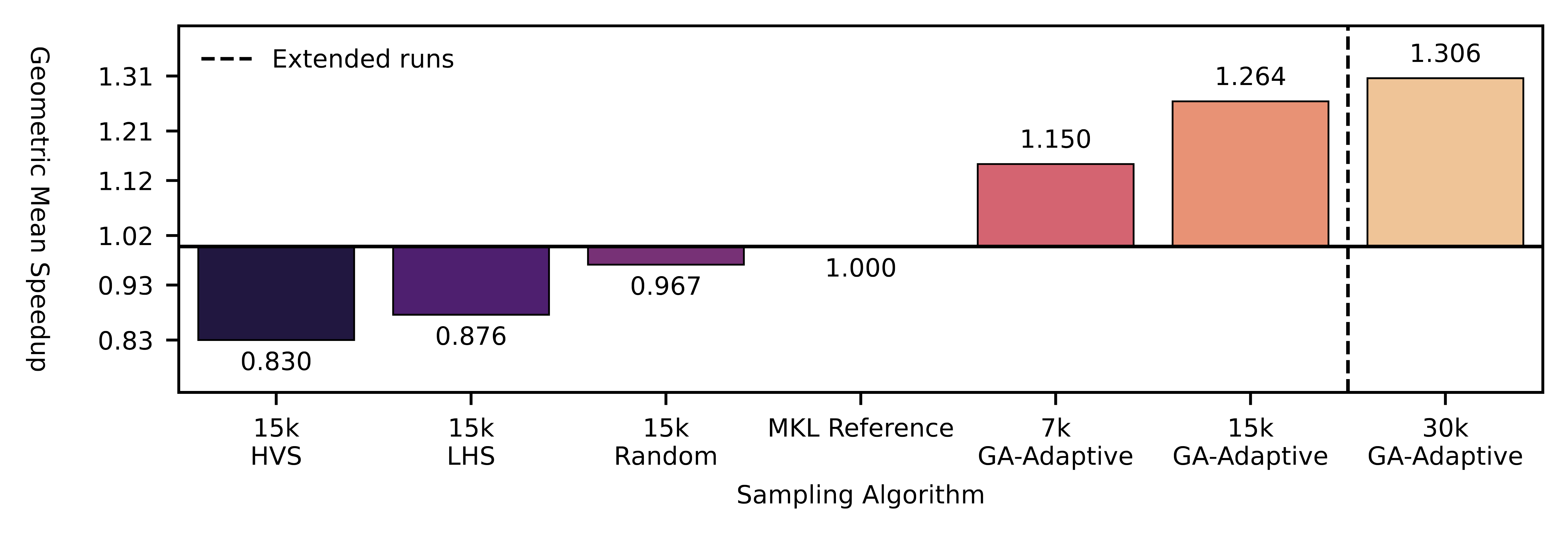

$**Prof Example** - (SPR): Geometric mean Speedup (higher is better) against the MKL reference configuration on dgetrf (LU), depending on the sampling algorithm. 46x46 validation grid. 7k/15k/30k denotes the samples count. GA-Adaptive outperforms all other sampling strategies for auto-tuning. With 30k samples it achieves a mean speedup of $\times 1.3$ of the MKL dgetrf kernel.$

Prof Example - (SPR): Geometric mean Speedup (higher is better) against the MKL reference configuration on dgetrf (LU), depending on the sampling algorithm. 46x46 validation grid. 7k/15k/30k denotes the samples count. GA-Adaptive outperforms all other sampling strategies for auto-tuning. With 30k samples it achieves a mean speedup of $\times 1.3$ of the MKL dgetrf kernel.

Plot Example - Summary¶

HPC is a scientific endeavour; data analysis and plotting are first class citizens.

Plots drive decisions
Plots make results trustworthy
Plots explain complex behaviors

Datasets are large, multi-disciplinary, and often hard to reproduce.

Plot Example - What makes a good plot¶

Ask yourself:

Who am I speaking to ?
What's my narrative?
Is my plot understandable in ~10 seconds?
Is my plot self-contained?
Is the context, environment, and methodology clear?

Experimental Methodology¶

Experimental Methodology - Workflow¶

Typical experimental workflow

Statistical significance - Introduction¶

Computers are noisy, complex systems:

Thread scheduling is non deterministic -> runtime varies between runs.
Dynamic CPU frequency (Turbo/Boost)
Systems are heterogeneous (CPU/GPU, dual socket, numa effects, E/P cores)
Temperature/thermal throttling can alter runtime

How can we make sure our experimental measurements are reliable and conclusive?

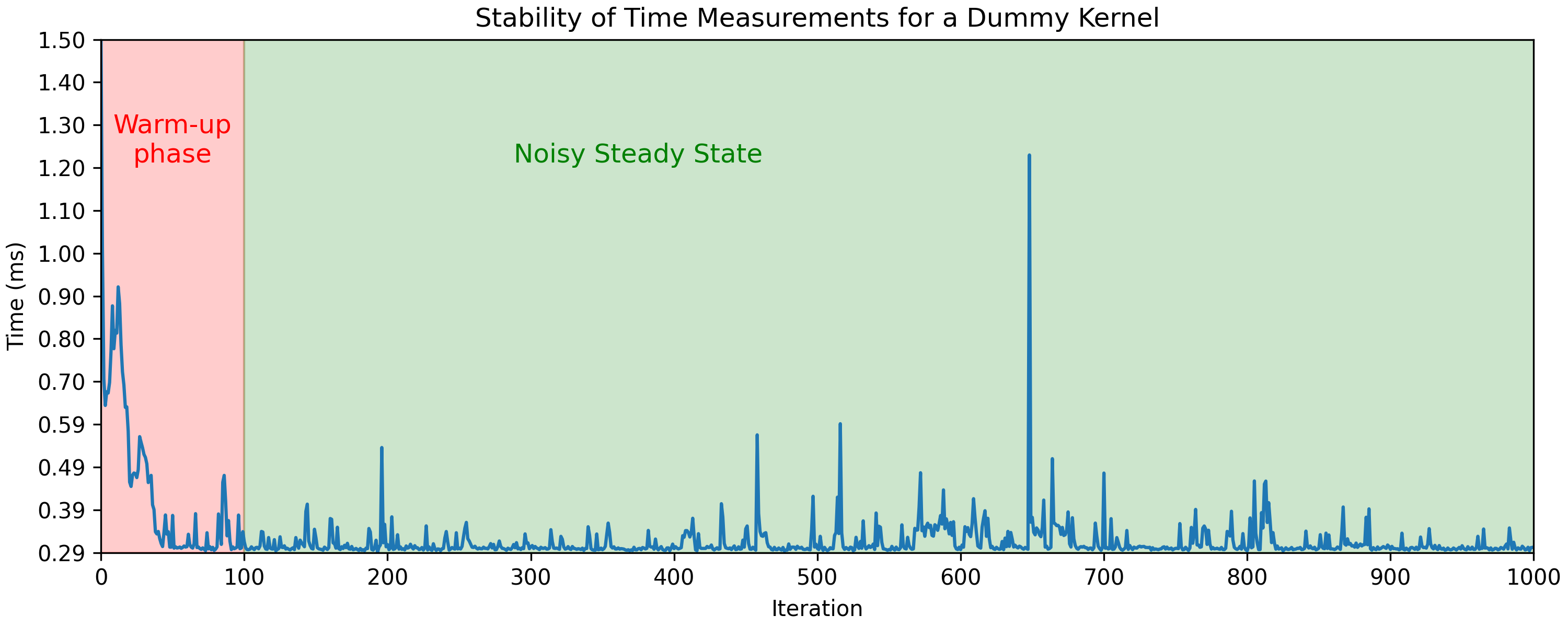

Statistical significance - Warm-up effects¶

Systems need time to reach steady-state:

On a laptop: $\mathrm{Mean} = 0.315\ \mathrm{ms},\ \mathrm{CV} = 13.55\%$

We need "warm-up" iterations to measure stable performance and skip cold caches, page faults, frequency scaling.

Statistical significance - Noise mitigation¶

Noise can only be mitigated:

Stop all other background processes (other users)
Stabilize CPU Frequency (sudo cpupower -g performance)
- Make sure laptops are plugged to avoid powersaving policies
Pin threads via taskset, OMP_PLACES and OMP_PROC_BIND
Consider hyperthreading
Use stable compute nodes

Meta-repetitions are essential to mitigate noisy measurements.

Statistical significance - Example¶

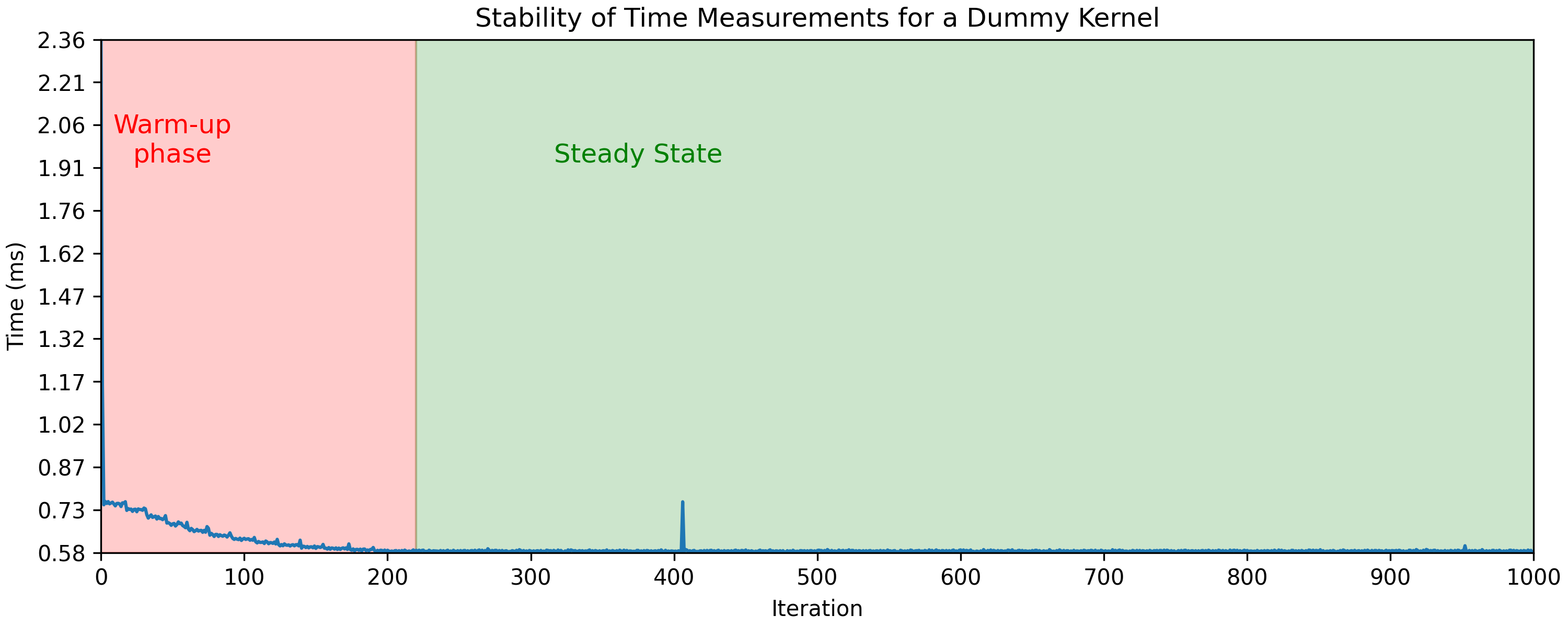

Same experiment on a stabilized benchmarking server:

On a laptop: $\mathrm{Mean} = 0.315\ \mathrm{ms},\ \mathrm{CV} = 13.55\%$
Stabilized node: $\mathrm{Mean} = 0.582\ \mathrm{ms},\ \mathrm{CV} = 1.14\%$

Note¶

Timing on a laptop is always subpar

Statistical significance - Mean, Median, Variance¶

Single-run measurements are misleading; we need statistics.

Mean runtime $\bar{x} = \frac{1}{n}\sum_{i=1}^{n}x_i$
Median: less sensitive to outliers than the mean
Variance/standard deviation: Measure of uncertainty
Relative metrics are useful: Coefficient of variation ($CV = \frac{\sigma}{\bar{x}} \times 100 \%$)

We usually give both the mean and standard deviation when giving performance results. Plots usually show $\bar{x} \pm 1 \sigma$ as a shaded region around the mean to represent uncertainty.

Note¶

Distribution plots can be useful: stable measurements are often close to Gaussian, even if systematic noise may lead to skewed or heavy-tailed distributions.

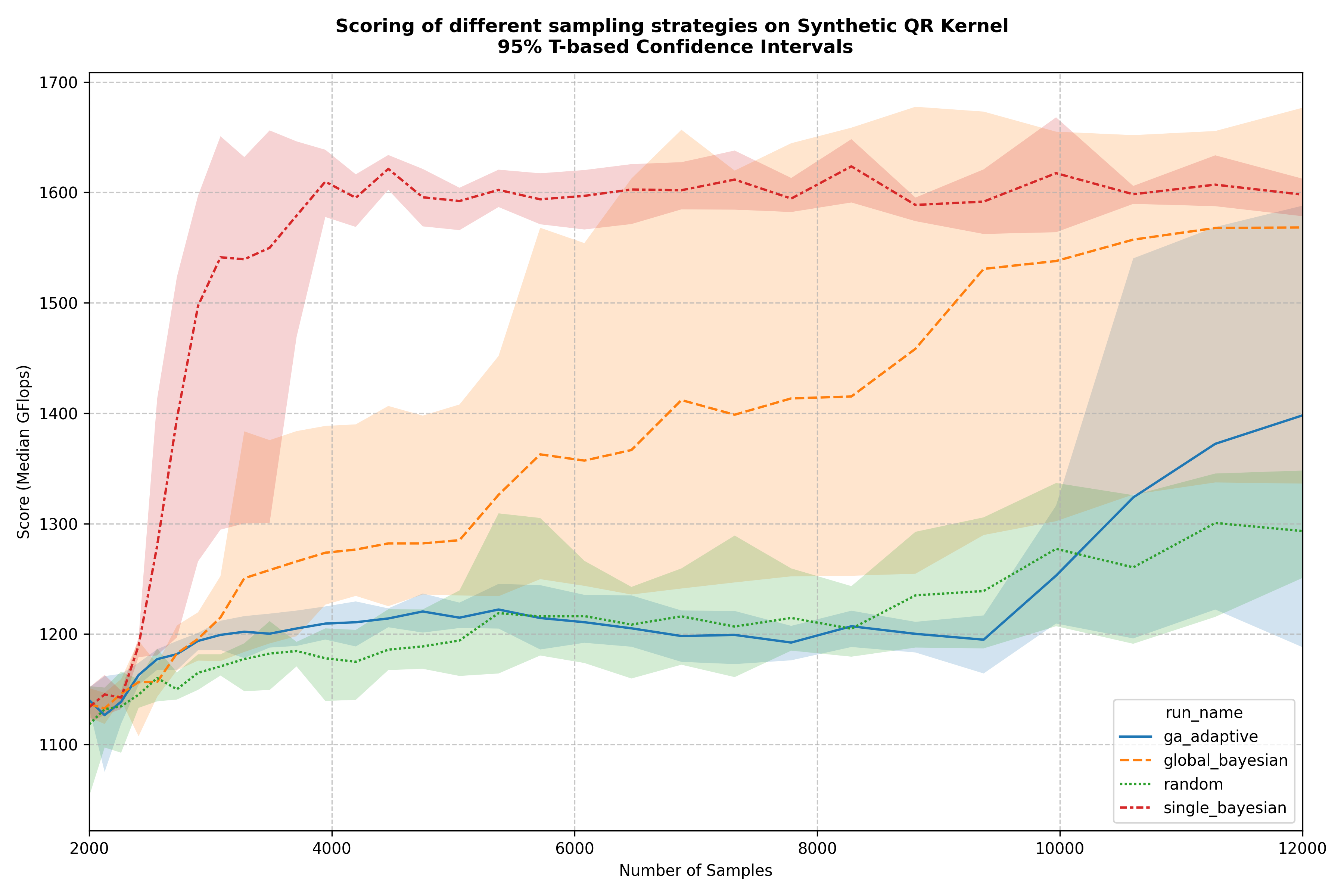

Statistical significance - Confidence Intervals¶

Plotting variance/uncertainty through confidence intervals can change interpretation.

Statistical significance - Confidence Intervals¶

How to decide how many repetitions we should perform ?

Usually, the costlier the kernels, the less meta-repetitions are expected
Short or really short kernels should have more metas to reduce the influence of noise

Remember that:

\[CI_{0.95} \approx \bar{x} \pm 1.96 \cdot \frac{\sigma}{\sqrt{n}}\]

More repetitions increase confidence, but returns diminish:
CI width $\propto \tfrac{1}{\sqrt{n}}$

Note¶

Confidence intervals are a bit less common in plots than $\pm 1 \sigma$ but can also be used !

Statistical significance - p-score & Hypothesis testing¶

In HPC, mean/median and variance often suffice, but hypothesis testing can become handy in some contexts.

Null hypothesis ($H_0$): GPU and CPU have the same performance for small matrixes
- Differences in measurements are only due to noise
Alternative hypothesis: CPU is faster for small matrixes
p-value is the probability that $H_0$ explains a phenomenon.
If $p < 0.05$, we can safely reject $H_0$ (Statistically significant difference)

Example: $\bar{x}_{GPU} = 5.0 \mathrm{s}$, $\sigma_{GPU} = 0.20$, $\bar{x}_{CPU} = 4.8 \mathrm{s}$, $\sigma_{CPU} = 0.4$, Two-sample t-test with 10 samples $p = 0.02$.

The measured differences between CPU and GPU execution time are statistically significant.

Experimental Methodology – Reproducibility¶

Reproducibility is a very hot topic (Reproducibility crisis in science):

Data and protocols are first-class citizens: as important as the plots themselves
Transparency matters: make data, scripts, and parameters accessible
Enables others to verify, build on, and trust your results

Note¶

Beware of your mindset: your results should be credible and honest before being "good".

"Our results are unstable, we have yet to understand why, this is what we tried" is a completely valid answer

Plotting Tools¶

Plotting tools - Cheetsheet¶

Name	Use
pandas	Storing and saving tabular data
numpy	Numerical arrays, manipulating data
matplotlib	Basic 2D plots, full control
seaborn	Statistical plots, higher-level API
logging	Logging experiment progress/results
OpenCV	Image processing, animations/videos
ffmpeg	Generating and encoding videos

Lookup the quick reference plotting gallery in the annex!
Both matplotlib and seaborn provide extensive online galleries.

[Live Example of the matplotlib gallery https://matplotlib.org/stable/gallery/index.html]

Plotting tools - Matplotlib¶

Matplotlib is one of the most widely used plotting libraries.

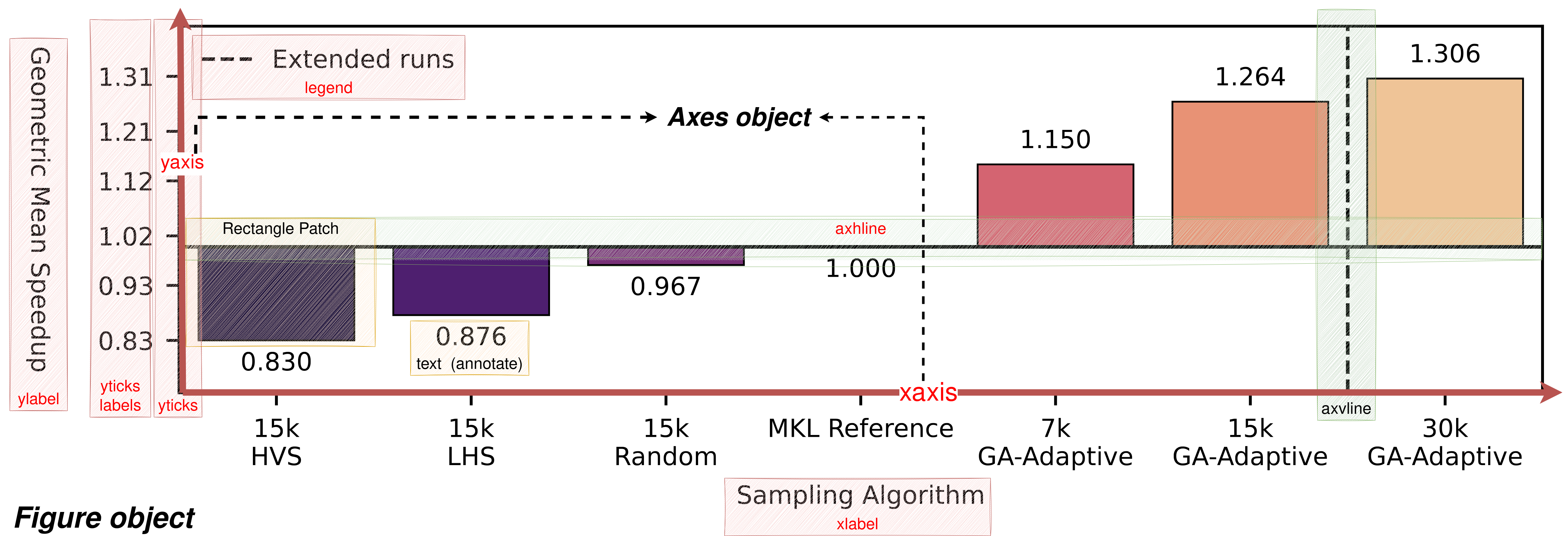

A figure is built hierarchically from nested elements:

- Figure (The canvas)
  - (Subfigures)
    - Axes (One or more subplots)
      - Axis (x/y/z scales, ticks, labels)
      - Artists (Lines, markers, text, patches, etc.)

Data is plotted using axes-level functions like ax.plot, ax.histogram
Customization occurs at both the Figure and Axes levels
Complex multi plots layout occur at the Figure level

Plotting tools - Matplotlib¶

import matplotlib.pyplot as plt

x = [0, 1, 2, 3]
y = [2.8, 5.7, 12.5, 14]

# Create a new figure, single axis
# Size is 8 inches by 8 inches, and constrained layout
fig, ax = plt.subplots(figsize=(8, 8), layout="constrained")

# Plot a simple line
ax.plot(x, y, color="red", label="My Algorithm")

# Customize the axes
ax.set_xlabel("Iteration") # Name of the X axis
ax.set_ylabel("Time (s)") # Name of the y axis
# Title of the plot
ax.set_title("Evolution of Time with the number of iteration")

ax.margins(0, 0) # Remove white spaces around the figure
ax.legend(loc="upper right") # Draw the legend in the upper right corner

fig.savefig("my_plot.png", dpi=300) # Higher DPI -> bigger image
plt.close() # End the plot and release resources

Plotting tools - Matplotlib (Multi axis)¶

We can easily have multiple plots on the same figure:

nrows = 5, ncols = 1
fig, axs = plt.subplots(5, 1, figsize(8 * ncols, 3 * nrows))

ax = axs[0]
ax.plot()
...

ax = axs[1]
ax.plot()
...

fig.tight_layout() # Alternative to constrained layout
fig.savefig("my_multiplot.png", dpi=300)

Each axis is its own plot, with its own legend and artists.

Note¶

Use the reference (https://matplotlib.org/stable/api/index.html) and gallery (https://matplotlib.org/stable/gallery/index.html) extensively !

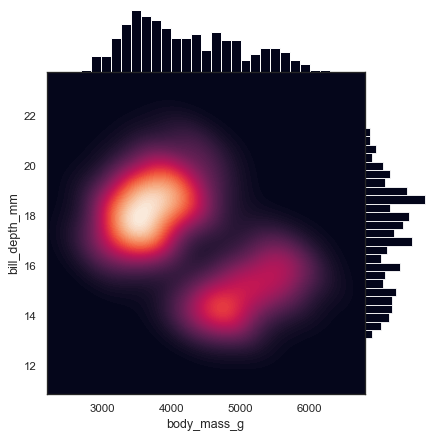

Plotting tools - Seaborn¶

Seaborn is an extension of Matplotlib dedicated to statistical visualization:

<https://seaborn.pydata.org/examples/index.html>

It's useful for histograms, bar charts, kdeplots, scatterplots, and is overall a very good companion library.

Plotting tools - Seaborn¶

import matplotlib.pyplot as plt
import seaborn as sns
import pandas as pd
import numpy as np

df = pd.read_csv(...) # Read the dataframe from somewhere

fig, ax = plt.subplots(figsize=(8, 8), layout="constrained")

# We must pass the axis to plot on as an argument
sns.kdeplot(data=df, x="Time", label="Algorithm", color="red", fill=True, ax=ax)

ax.set_title("Distribution of Execution time for the algorithm")
ax.margins(0, 0)
ax.set_xlabel("Time (s)", fontweight="bold")
ax.set_ylabel("Density", fontweight="bold")

ax.set_xticks(np.linspace(df["Time"].min(), df["Time"].max(), 10)
# Format the x axis ticks: `3.25s`
ax.xaxis.set_major_formatter(StrMethodFormatter("{x:.2f}s"))

fig.savefig("my_distribution.png")

https://matplotlib.org/stable/gallery/ticks/tick-formatters.html

Profiling¶

Profiling - Motivation¶

HPC codes are massive, complex and heterogeneous
Humans are bad at predicting bottlenecks
Don’t blindly optimize everything
Profiling guides optimization

Remember: Always profile first.

Profiling - Amdahl's law¶

\[ \mathrm{Speedup} = \frac{1}{1 - f + \frac{f}{S}} \]

Where f is the fraction of program improved, and S is the speedup on that fraction.

Example:

I have optimized 80% of my application, with a speedup of x10
In total, my application is now $\frac{1}{0.2 + (0.8 / 10)} = 3.57 \times$ faster

The 20% are a bottleneck !

Profiling - Steps¶

Where (Hotspots) ?
- What functions are we spending time/energy in ?
- What call-tree are we spending time/energy in ?
Why ?
- Arithmetic density, memory access patterns
- Cache misses, branch misspredictions, vectorization efficieny (Hardware counters)
What goal ?
- Should I optimize for speed ? For energy ? Memory footprint ?
- What about cold storage size/compression ?
- Do I have constraints (i.e. limited memory) ?
- Should I optimize or switch algorithm ?

Profiling - Time¶

It's rather easy to benchmark a single function using a (high-resolution, monotonic) clock:

begin = time.now()
my_function()
end = time.now()
elapsed = end - begin

Quick-and-dirty way to profile part of my program.

Profiling - Time (Stability)¶

But we have to account for noise:

for _ in range(NWarmup):
  my_function()

times = []
for i in range(NMeta):
  begin = time.perf_counter()
  my_function()
  times.append((i, time.perf_counter() - begin))

df = pd.DataFrame(times, columns=["Iteration", "Time"])

median = np.median(df["Time"])
std = np.std(df["Time"])
print(f"Time: {median} +/- {std}")
...
# Plot through seaborn !
sns.plot(data=df, x="Iteration", y="Time", ax=ax)
...

We must check that our measures are acceptable!

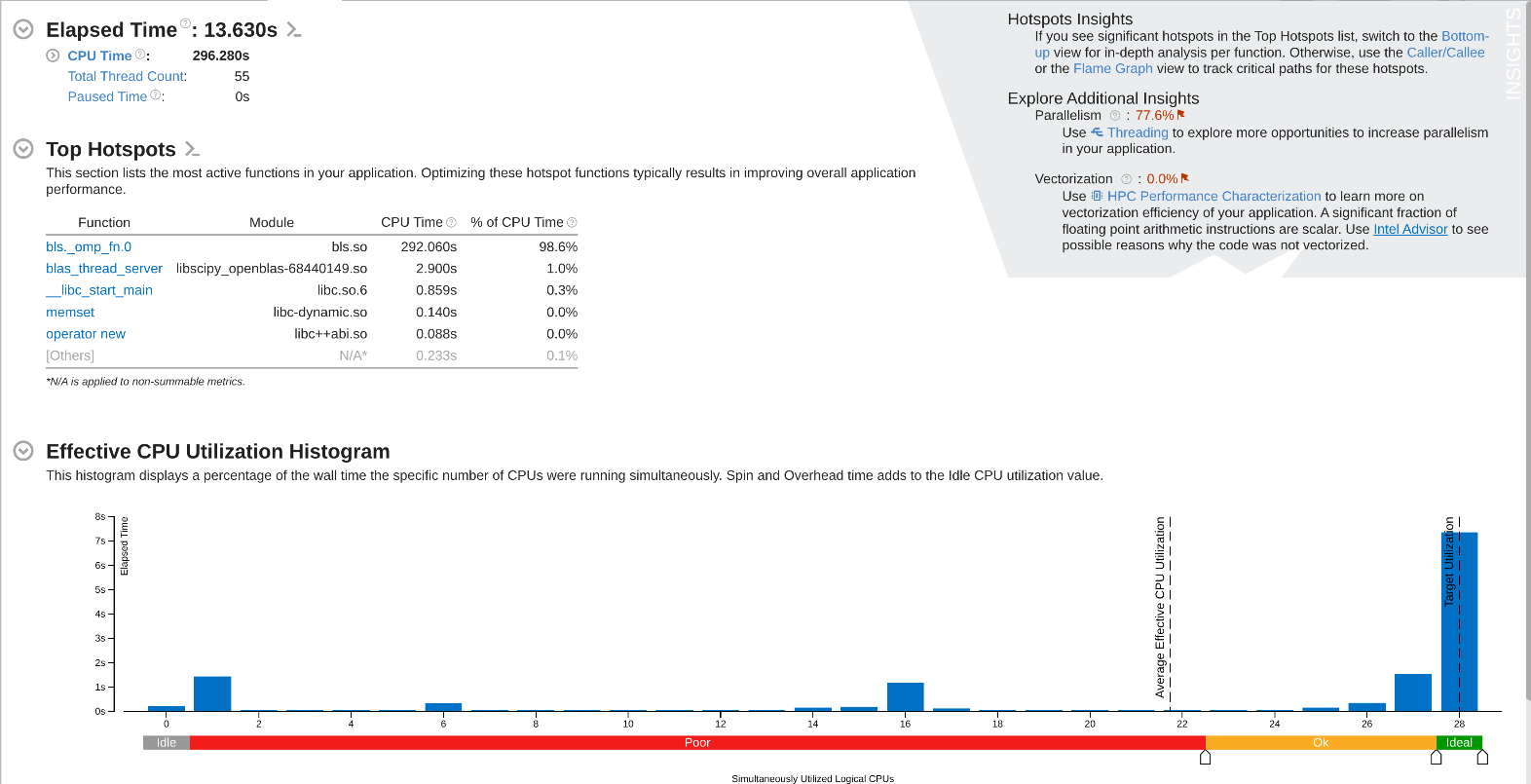

Profilers - Introduction¶

Full application -> Thousands of functions to measure !

Profilers are tools to automate this
Two main types:
Sampling: Pause the program and log where the program is (Costly functions -> More samples !)
Instrumentation: Modify the program to automatically add timers

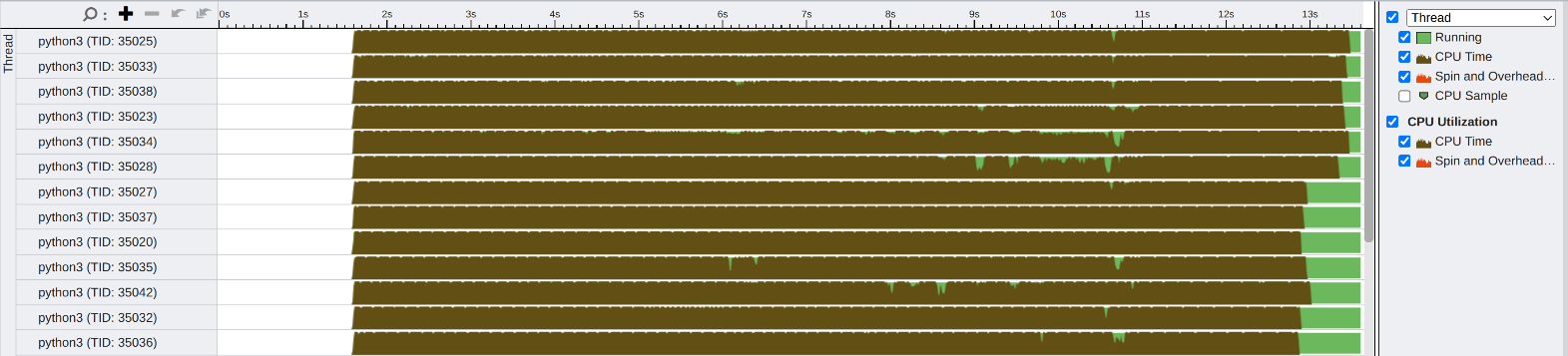

Profilers can also check for thread usage, vectorization, memory access, etc.

Perf - Record¶

Linux Perf is a powerful and versatile profiler:

gcc ... -g -fno-omit-frame-pointer
perf record -g -- ./mytransform ./pipelines/big.pipeline
Loaded image: images/image1.bmp (3660x4875, 3 channels)
[ perf record: Woken up 3 times to write data ]
[ perf record: Captured and wrote 0.484 MB perf.data (2941 samples) ]

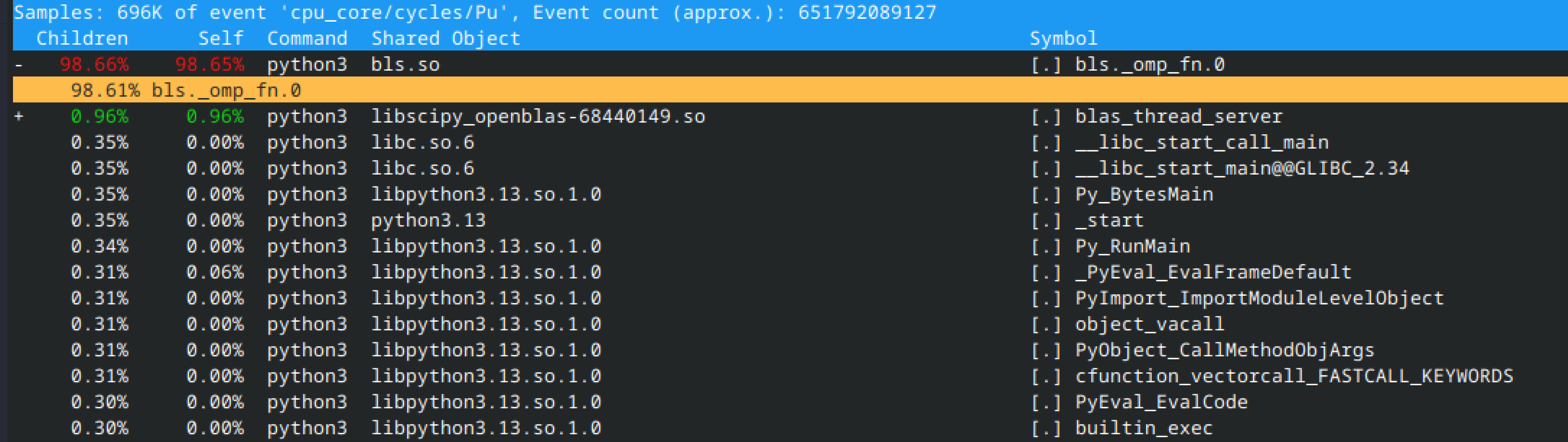

perf report

It's a great tool to quickly get call stacks with few dependencies.

Profiling - Hardware counters¶

In reality, perf is not just a profiler !

The Linux Perf API can be used to access many hardware counters
Perf record is just one usage of perf

Most CPUs/GPUs have hardware counters that monitors different events:

Number of cycles
Number of retired instructions
Number of memory access
RAPL energy counters

Profiling - Perf for Hardware counters¶

perf stat -e cycles,instructions python3 ./scripts/run_bls.py ...
...

 Performance counter stats:
   749,352,412,722      cpu_core/cycles/
 3,142,707,494,308      cpu_core/instructions/           #    4.19  insn per cycle

      32.363472139 seconds time elapsed
     225.351168000 seconds user
       0.111367000 seconds sys

4.19 instruction per cycle -> Very good vectorization
time elapsed -> "Wall clock time"
seconds user -> CPU time in user space -> $225 / 30 \approx 7$ threads !

Profiling - Perf for Hardware counters¶

perf stat -e cache-references,cache-misses python3 ./scripts/run_bls.py ...
...

 Performance counter stats:
       394,258,269      cpu_core/cache-references/
        36,823,151      cpu_core/cache-misses/           #    9.34% of all cache refs

      32.363472139 seconds time elapsed
     225.351168000 seconds user
       0.111367000 seconds sys

394,258,269 references to the LLC (On Intel)
36,283,151 LLC misses -> 9.3% miss rate

Profiling - Perf for Hardware counters¶

perf stat -e branches,branch-misses python3 ./scripts/run_bls.py ...
...

 Performance counter stats:
   761,974,570,065      cpu_core/branches/
       248,674,718      cpu_core/branch-misses/          #    0.03% of all branches

      32.363472139 seconds time elapsed
     225.351168000 seconds user
       0.111367000 seconds sys

761,974,570,065 execution flow breaks (ifs, returns, loops, etc.)
248,674,718 branch misses -> Good branch prediction! ($0.9%$ miss rate)

Perf - Record with other events¶

We can also use perf record with other events !

perf record -e "cache-references,cache-misses,branches,branch-misses" -g -- ./mytransform ./pipelines/big.pipeline
Loaded image: images/image1.bmp (3660x4875, 3 channels)
[ perf record: Woken up 7 times to write data ]
[ perf record: Captured and wrote 1.709 MB perf.data (10260 samples) ]

perf report

Intel VTune¶

Perf is a bit "barebone": many profilers build upon perf like Intel VTune

VTune - CPU Usage¶

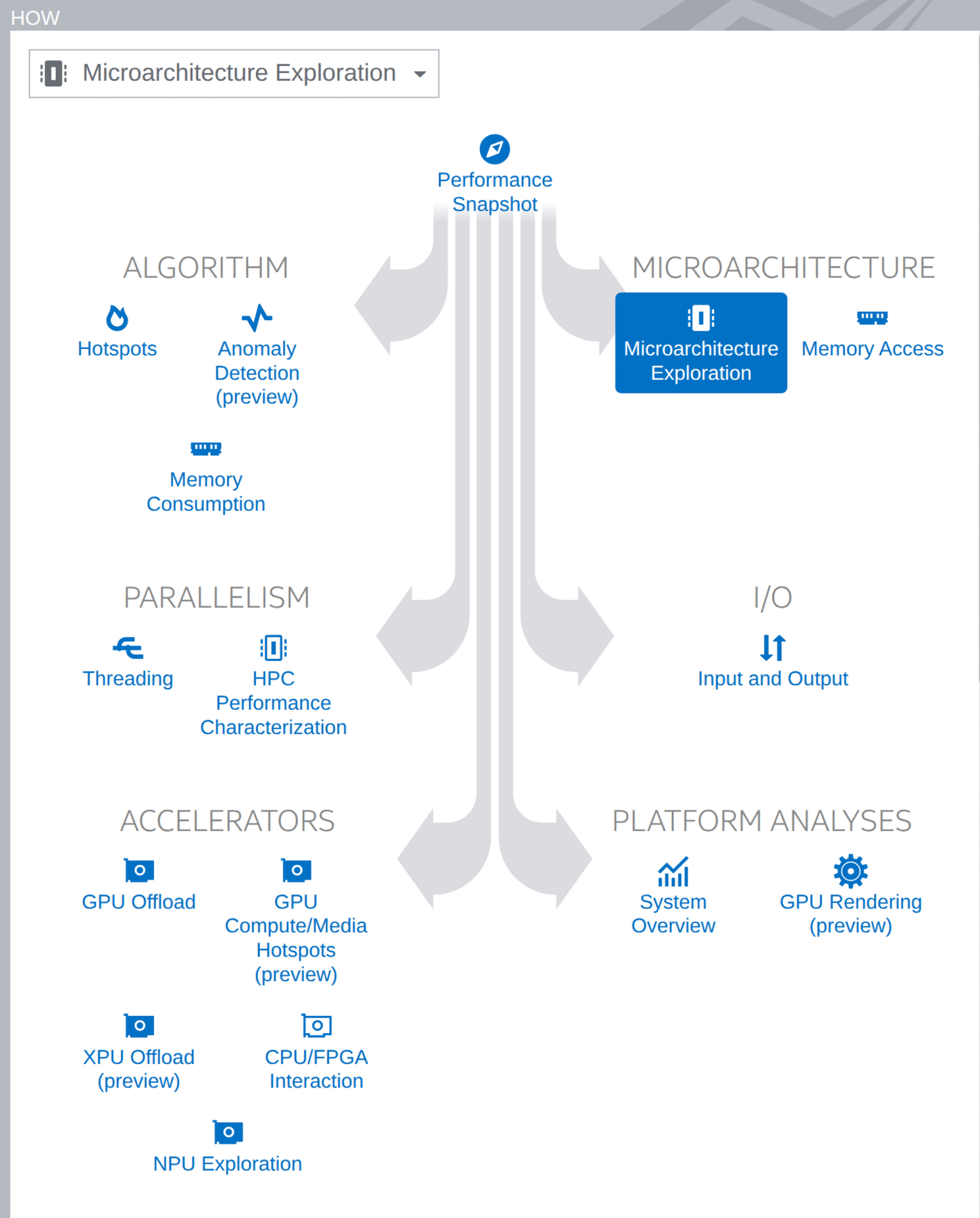

VTune - Collections Mode¶

VTune has multiple collection mode:

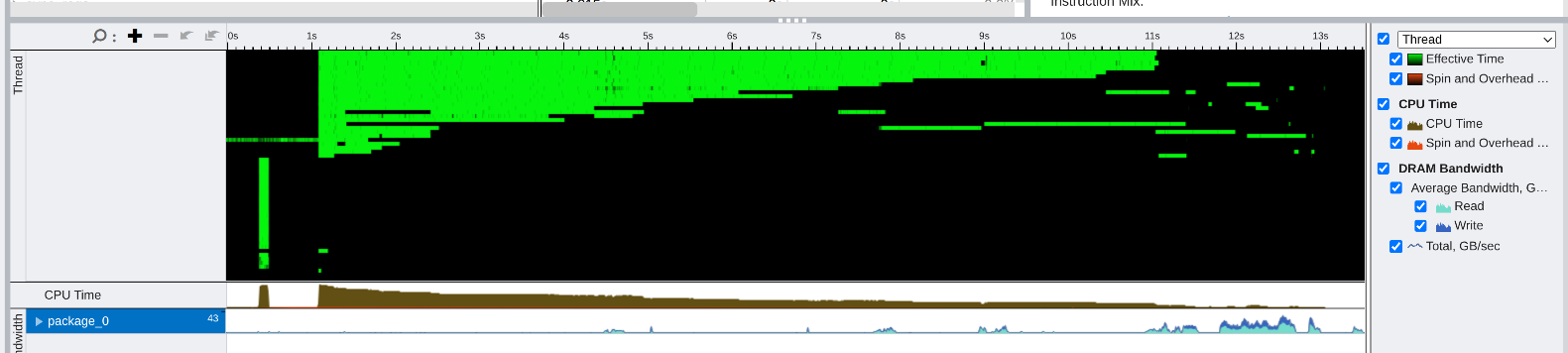

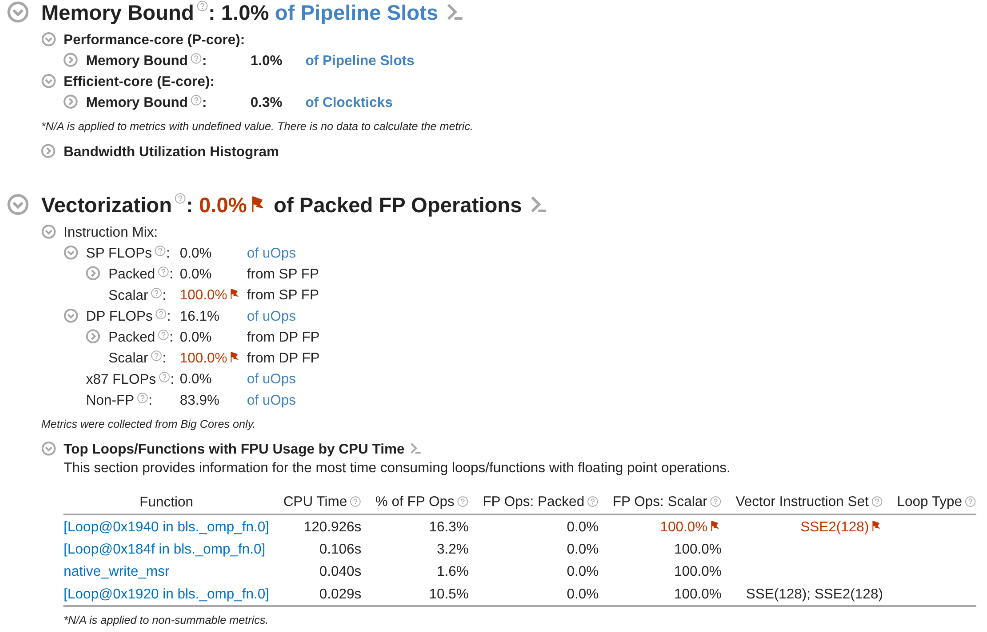

VTune - HPC Performance¶

VTune has multiple collection mode:

Other profilers¶

MAQAO is a profiler developped by the LIPARAD
AMD, NVIDIA and ARM have their own profilers for their platforms
And many, many others (likwid, gprof, etc.)

Usually, we combine a "quick" profiler like gprof/perf record with a more indepth one when needed.

Profiling - Energy¶

Energy is a growing concern:

One HPC cluster consume millions of dollars in electricity yearly
ChatGPT and other LLM are computationally intensive:
Nvidia GPUs consumes lots of energy

On the flip side, measuring energy is harder than measuring time.

Many actors still focus on execution time only -> Energy is perceived as "Second rank"

Profiling - RAPL¶

Running Average Power Limit (RAPL) is an x86 hardware counter that monitors energy consumption:

Energy is tracked at different level
Core, Ram, Package, GPU, etc.
It does not account for secondary power consummers (Fans, Water cooling, etc.)
RAPL is not event based: The entire machine is measured ! (Background processes, etc.)

It requires sudo permissions to access (compared to a clock)

perf stat -a -j -e power/energy-pkg,power/energy-cores <app>
{"counter-value" : "88.445740", "unit" : "Joules", "event" : "power/energy-pkg/", "event-runtime" : 10002168423, "pcnt-running" : 100.00}
{"counter-value" : "10.848633", "unit" : "Joules", "event" : "power/energy-cores/", "event-runtime" : 10002166697, "pcnt-running" : 100.00}

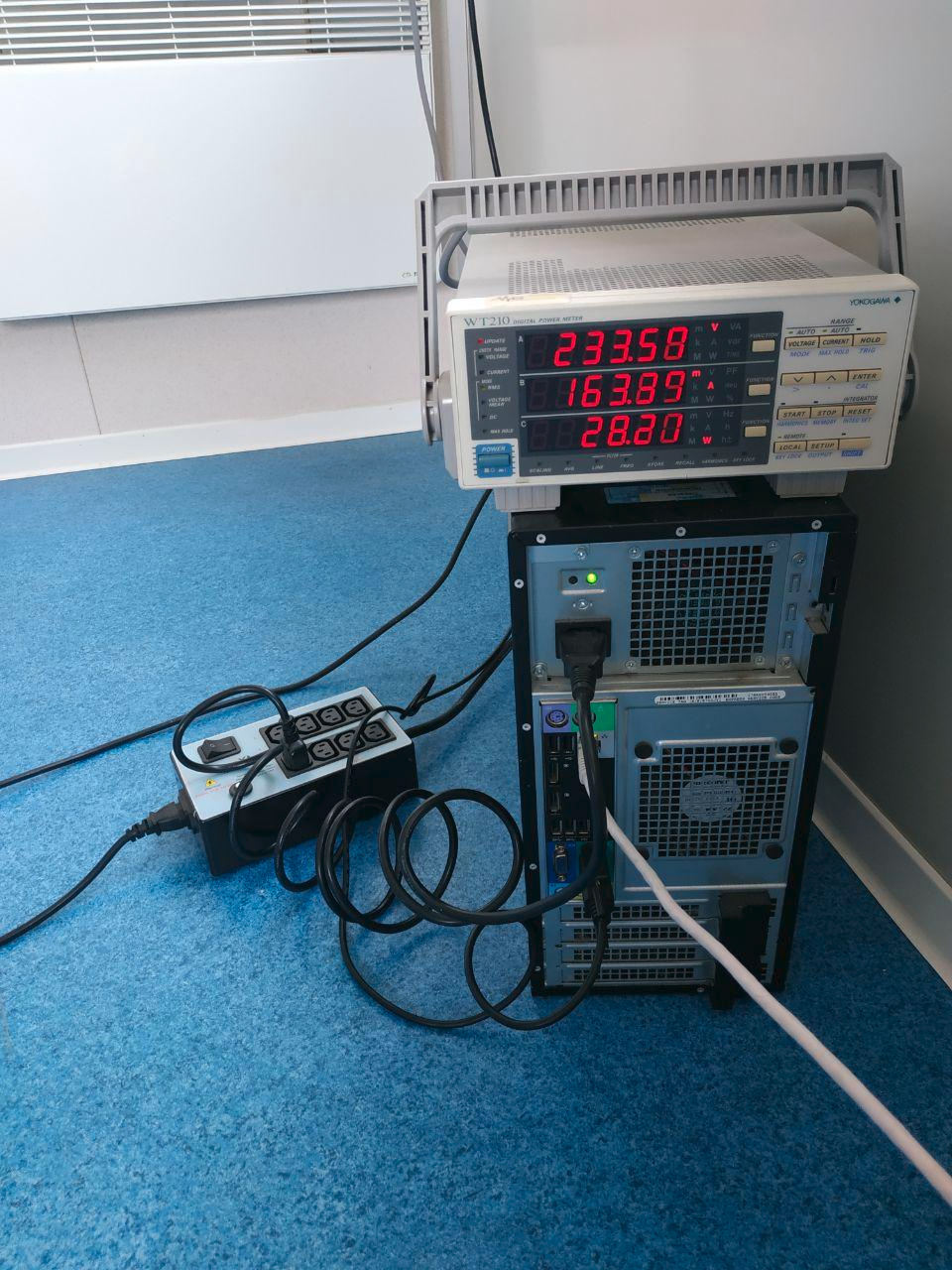

Profiling - Watt-Meter (Yokogawa)¶

Yokogawa

Hardware solutions are also available to monitor energy consumption. They typically have a slow sampling resolution ($\approx 1s$) and are harder to scale to entire clusters.

On the flip side, they give precise power measurements compared to RAPL.

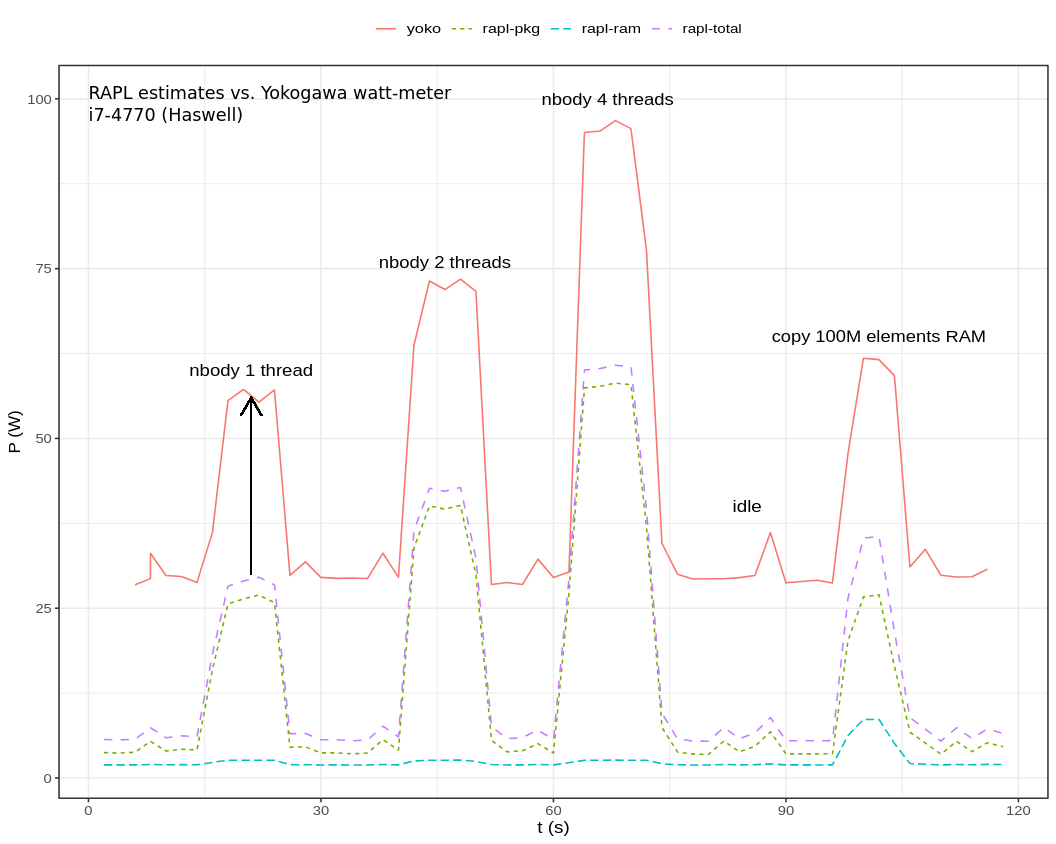

Profiling - RAPL accuracy¶

Calibration of RAPL

In practice, RAPL underestimates power consumption, but trends are correctly matched.

Live Demo¶

Experiment example¶

Annex/run_experiment.sh

Annex/model_convergence.py
