Building, Testing and Debugging Scientific Software

Download as slides 📥

Objectives

• Build systems: Advanced Makefiles, introduction to CMake for managing multi-file and multi-platform projects.
• Debugging: GDB, Valgrind for detecting memory errors and leaks.
• Software testing:
• Principles: Unit testing, integration testing.
• Test frameworks in C (e.g., Unity).
• Importance of testing for regression prevention and validation.
• Code documentation: Doxygen.

Makefiles

Dependency Management

• How to determine which files have changed?

• dependencies: main.o depends on changes in lib.h

Makefile

• A Makefile uses a declarative language to describe targets and their dependencies.

• It is executed by the make command, which allows building different targets.

• make uses timestamps to determine which files have changed.

• make evaluates rules recursively to satisfy dependencies.

Makefile Rule

prog: main.c lib.c lib.h
  clang -o prog main.c lib.c -lm

target: dependencies
\t  command to build the target from the dependencies

Separate Compilation

prog: main.o lib.o
  clang -o prog main.o lib.o -lm

main.o: main.c lib.h
  clang -c -o main.o main.c

lib.o: lib.c lib.h
  clang -c -o lib.o lib.c

If lib.c is modified, which commands will be executed?

Phony Targets

You can add targets that do not correspond to a produced file. For example, it is useful to add a clean target to clean the project.

clean:
  rm -f *.o prog
.PHONY: clean

.PHONY specifies that the clean rule should always be executed. Declaring all phony targets ensures they are always called (even if a file with the same name is created).

Default Rule

make clean
make prog
make

• If make is called with a rule, that rule is built.
• If make is called without arguments, the first rule is built. It is customary to include a default all: rule as the first rule.

all: prog

prog: ...

Variables

CC=clang
CFLAGS=-O2
LDFLAGS=-lm

prog: main.o lib.o
  $(CC) -o prog main.o lib.o $(LDFLAGS)

main.o: main.c lib.h
  $(CC) $(CFLAGS) -c -o main.o main.c

lib.o: lib.c lib.h
  $(CC) $(CFLAGS) -c -o lib.o lib.c

Variables can be overridden when calling make, e.g.,

make CC=gcc

Special Variables

---

$@ target name $^ all dependencies $< first dependency

---

prog: main.o lib.o
  $(CC)  -o $@ $^ $(LDFLAGS)

main.o: main.c lib.h
  $(CC) $(CFLAGS) -c -o $@ $<

lib.o: lib.c lib.h
  $(CC) $(CFLAGS) -c -o $@ $<

The last two rules are very similar...

Implicit Rules

Before

main.o: main.c lib.h
  $(CC) $(CFLAGS) -c -o $@ $<

lib.o: lib.c lib.h
  $(CC) $(CFLAGS) -c -o $@ $<

With Implicit Rule

%.o: %.c
  $(CC) $(CFLAGS) -c -o $@ $<

main.o: lib.h
lib.o: lib.h

Other Build Systems

• automake / autoconf: automatic generation of complex makefiles and management of system-specific configurations.

• cmake, scons: successors to Makefile, offering more elegant syntax and new features.

CMake

Why CMake?

• Advantages of Makefiles:
• Simplicity and transparency.
• No additional tools required.

• Direct control over the build process.

• Advantages of CMake:

• Cross-platform support (Linux, Windows, macOS).
• Generates build files for multiple build systems (Make, Ninja, etc.).
• Modular and target-based design.
• Built-in support for testing, installation, and packaging.

General Design of CMake

• CMake as a Meta-Build System:
• Generates build files for different generators (e.g., Make, Ninja).

• Abstracts platform-specific details.

• Workflow:

• Write CMakeLists.txt to define the project.

• Configure the project:

  cmake -B build


• Build the project:

  cmake --build build
  # or when using Make as backend
  make -C build


Out-of-source builds are recommended to keep source directories clean.

Basic Structure of CMakeLists.txt

cmake_minimum_required(VERSION 3.15)
project(MyProject LANGUAGES C)

set(CMAKE_C_STANDARD 11)

• cmake_minimum_required: Specifies the minimum version of CMake required.
• project: Defines the project name and the programming language(s) used.
• set: Sets variables, e.g., C standard version.

Adding an Executable

add_executable(my_executable src/main.c)

• Creates an executable named my_executable.

Adding a Shared Library

add_library(my_library SHARED src/library.c)

• Creates a shared library named libmy_library.so (on Linux).

Linking Libraries to Executables

add_library(my_library SHARED src/library.c)
add_executable(my_executable src/main.c)
target_link_libraries(my_executable PRIVATE my_library)

• add_library: Creates a shared library.
• add_executable: Creates an executable.
• target_link_libraries: Links the library to the executable.

PRIVATE means that my_executable uses my_library, but my_library does not need to be linked when other targets link to my_executable.

Library dependency transitivity

add_library(libA SHARED src/libA.c)
add_library(libB SHARED src/libB.c)
target_link_libraries(libB PUBLIC libA)
add_executable(my_executable src/main.c)
target_link_libraries(my_executable PRIVATE libB)

• my_executable is linked to libB and also to libA because libB links to libA with PUBLIC.
• If libB linked to libA with PRIVATE, my_executable would not be linked to libA.
• If libB linked to libA with INTERFACE, my_executable would be linked to libA but not libB.
• See this reference for more details.

Global Include Directories

include_directories(include)

• Adds the include directory globally for all targets.
• Limitation: Can lead to conflicts in larger projects.

Target-Specific Include Directories

target_include_directories(my_library
    PUBLIC include
)

• PUBLIC: Include directory is needed when building and using the library.
• PRIVATE: Include directory is needed only when building the library.
• INTERFACE: Include directory is needed only when using the library.

Porting our minimal Makefile example to CMake

cmake_minimum_required(VERSION 3.15)
project(MyProject LANGUAGES C)

# Add the executable target
add_executable(prog main.c lib.c)

# Specify include directories for the target
target_include_directories(prog
  PRIVATE ${CMAKE_CURRENT_SOURCE_DIR})

# Add compile options
target_compile_options(prog PRIVATE ${CFLAGS})

# Link libraries if needed
target_link_libraries(prog PRIVATE m)

Debug vs Release Builds

• Debug Build:
• Includes debug symbols for debugging.

• Example flags: -g, -O0.

• Release Build:

• Optimized for performance.
• Example flags: -O3, -DNDEBUG.

Setting Build Types in CMake

if(NOT CMAKE_BUILD_TYPE)
  set(CMAKE_BUILD_TYPE RelWithDebInfo CACHE STRING "Build type" FORCE)
endif()

• Build types: Debug, Release, RelWithDebInfo, MinSizeRel.

• CACHE: Makes the variable persistent across CMake runs. In out-of-source builds CMakeLists.txt is not re-evaluated on subsequent runs.

• FORCE: Overrides any previous value.
• STRING: "Build type" provides a description in CMake GUI.

Adding Compiler Flags

target_compile_options(my_library PRIVATE
    $<$<CONFIG:Debug>:-g -Wall>
    $<$<CONFIG:Release>:-O3 -DNDEBUG>
)

• Generator Expressions: $<CONFIG:Debug> applies flags only for Debug builds.

Installing Targets

install(TARGETS my_library
    LIBRARY DESTINATION lib
    PUBLIC_HEADER DESTINATION include
)

• Installs the shared library to the lib directory.
• Installs public headers to the include directory.

Using GNUInstallDirs

include(GNUInstallDirs)

install(TARGETS my_library
    LIBRARY DESTINATION ${CMAKE_INSTALL_LIBDIR}
    PUBLIC_HEADER DESTINATION ${CMAKE_INSTALL_INCLUDEDIR}
)

• Defines standard GNU library and include directories paths.

Generating and Building the Project

1. Configure the Project:

cmake -B build

• Generates build files in the build directory.

• Build the Project:

cmake --build build
# or when using Make as backend
make -C build

1. Run the Program:

./build/my_executable

Best Practices for CMake

• Use Target-Based Commands:
• Prefer target_include_directories over include_directories.

• Prefer target_link_libraries over global linking.

• Organize CMakeLists.txt:

• Group related targets together.

• Use comments to explain sections.

• Avoid Global Commands:

• Avoid include_directories and link_libraries globally.

• Use Modern CMake Features:

• Generator expressions for conditional configurations.
• FetchContent for managing external dependencies.

Debugging Tools

Buggy program example

/* Linked list of n = 5 nodes
         .---------.    .---------.           .--------------.
         | val = 4 |    | val = 3 |           | val = 0      |
 head -> | next  --|--> | next  --|--> ... -> | next =  NULL |
         '---------'    '---------'           '--------------'
 */

#include <stdlib.h>
#include <assert.h>

struct Node
{
  int val;
  struct Node *next;
};

int main()
{
  int n = 5;

  struct Node *head = init_list(n);
  // ... do something with the list ...
  delete(head);

  return 0;
}

Linked List Initialization and Deletion

struct Node *init_list(int n)
{
  struct Node *head = NULL;
  for (int i = 0; i < n; ++i)
  {
    struct Node *p = malloc(sizeof *p);
    assert(p != NULL);
    p->val = i;
    p->next = head;
    head = p;
  }
  return head;
}

void delete(struct Node *head)
{
  while (head)
  {
    struct Node *next = head->next;
    free(head);
    head = head->next;
  }
}

Running the program...

$ gcc -g -O0 -o buggy buggy.c
$ ./buggy
Segmentation fault (core dumped)

GDB: GNU Debugger

• Inspect the state of a program at the moment it crashes.
• Step through the code line by line.
• Inspect variables and memory.
• Set breakpoints to pause execution at specific lines.

(Live demonstration)

$ gdb ./buggy
Program received signal SIGSEGV, Segmentation fault.
0x000055555555522b in delete (head=0xa45d97b66d0683e8) at buggy.c:28
28          struct Node *next = head->next;
(gdb) x head
0xa45d97b66d0683e8:     Cannot access memory at address 0xa45d97b66d0683e8

Valgrind: memory debugging and leak detection

• Detects memory leaks, invalid memory access, and uninitialized memory usage.
• Runs the code in a virtual sandbox that monitors every memory operation.

(Live demonstration)

$ valgrind --leak-check=full ./buggy
==537945== Invalid read of size 8
==537945==    at 0x109243: delete (buggy.c:30)
==537945==    by 0x109282: main (buggy.c:40)
==537945==  Address 0x4a94188 is 8 bytes inside a block of size 16 free'd
==537945==    at 0x484988F: free (in /usr/libexec/valgrind/vgpreload_memcheck-amd64-linux.so)
==537945==    by 0x10923E: delete (buggy.c:29)
==537945==    by 0x109282: main (buggy.c:40)
==537945==  Block was alloc'd at
==537945==    at 0x4846828: malloc (in /usr/libexec/valgrind/vgpreload_memcheck-amd64-linux.so)
==537945==    by 0x1091B2: init_list (buggy.c:15)
==537945==    by 0x109272: main (buggy.c:38)

Other tools: ASAN, UBSAN

• AddressSanitizer (ASAN): Detects memory errors such as buffer overflows and use-after-free.
• UndefinedBehaviorSanitizer (UBSAN): Detects undefined behavior in C/C++ programs.
• Works on threaded programs and has lower overhead than Valgrind.

(live demonstration)

$ gcc -fsanitize=address -g -O0 -o buggy_asan buggy.c
$ ./buggy_asan
=================================================================
==538335==ERROR: AddressSanitizer: heap-use-after-free on address 0x502000000098 at pc 0x5bec7c7343e9 bp 0x7ffdf3015150 sp 0x7ffdf3015140
READ of size 8 at 0x502000000098 thread T0
    #0 0x5bec7c7343e8 in delete /home/poliveira/test-gdb/buggy.c:30
    #1 0x5bec7c73442c in main /home/poliveira/test-gdb/buggy.c:40

Software Testing

Importance of Software Testing

• 1996: Ariane-5 self-destructed due to an unhandled floating-point exception, resulting in a $500M loss.
• 1998: Mars Climate Orbiter lost due to navigation data expressed in imperial units, resulting in a $327.6M loss.
• 1988-1994: FAA Advanced Automation System project abandoned due to management issues and overly ambitious specifications, resulting in a $2.6B loss.
• 1985-1987: Therac-25 medical accelerator malfunctioned due to a thread concurrency issue, causing five deaths and numerous injuries.

Technical Debt

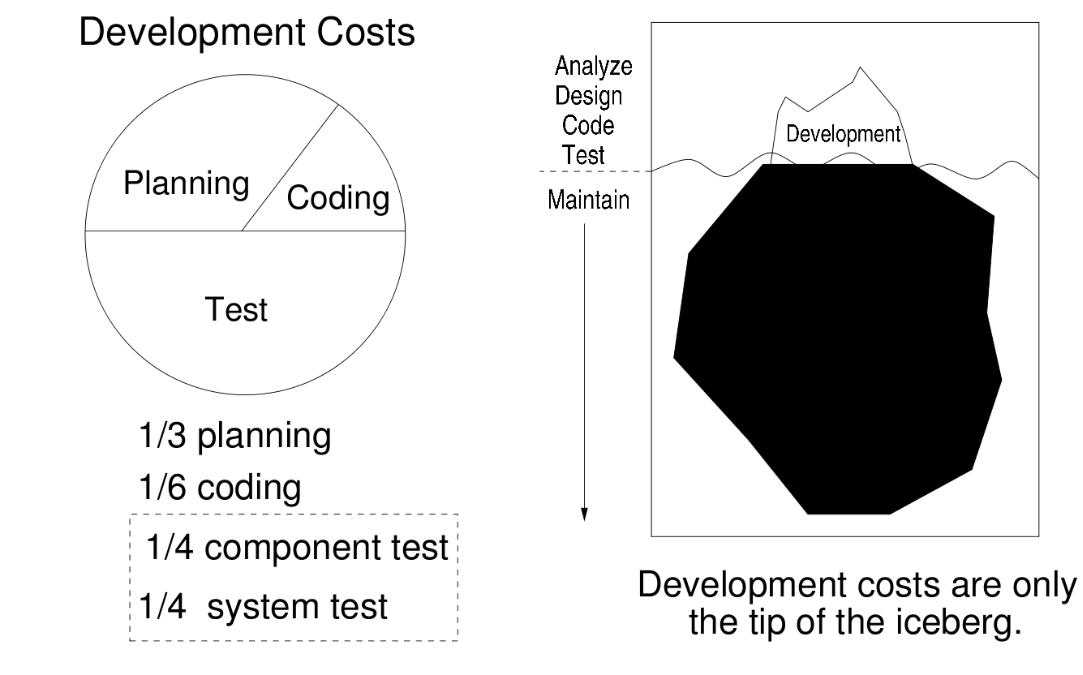

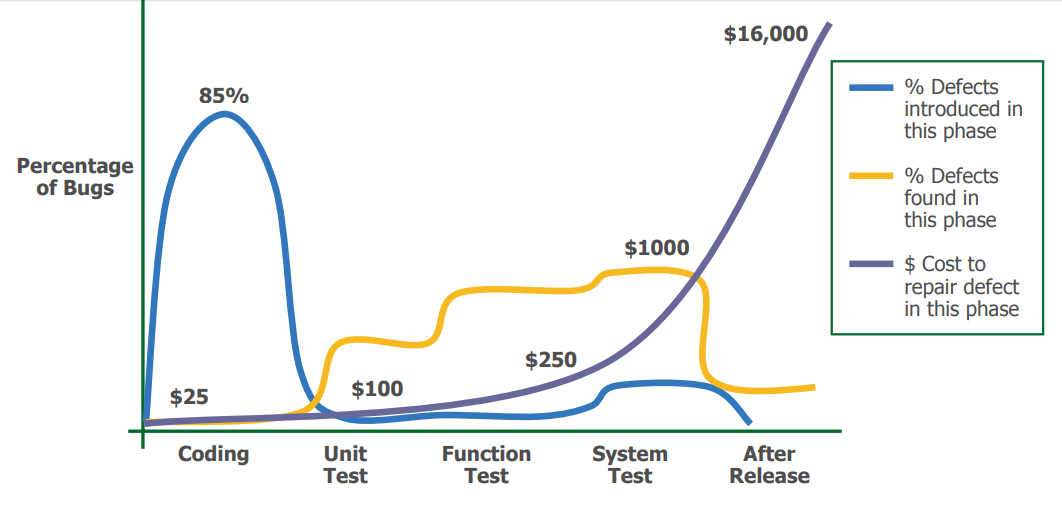

Software Costs

Verification and Validation (V&V)

• Validation: Does the software meet the client's needs?

• "Are we building the right product?"

• Verification: Does the software work correctly?

• "Are we building the product right?"

Approaches to Verification

• Formal methods
• Modeling and simulations
• Code reviews
• Testing

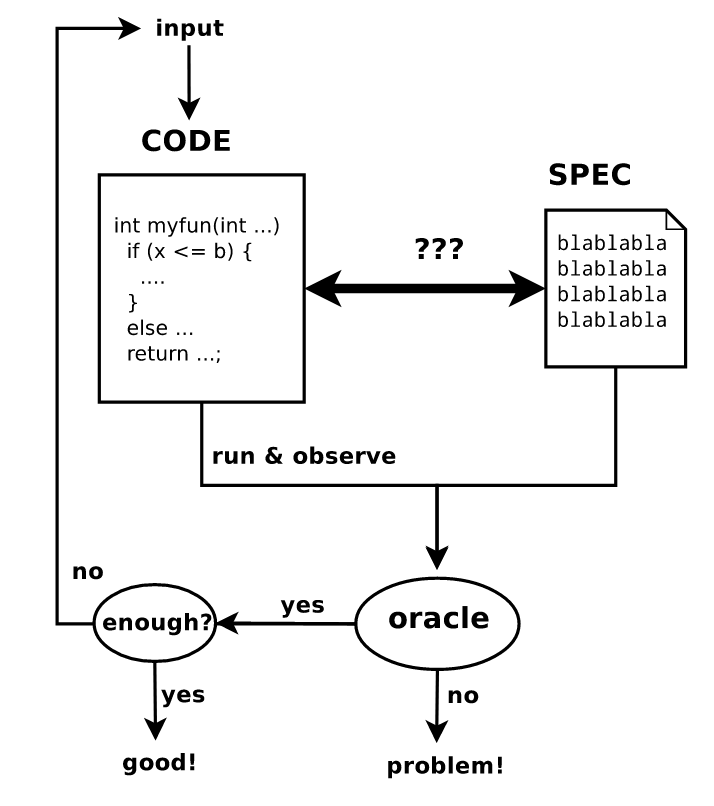

Testing Process

V Cycle Model

Different Types of Tests

• Unit Tests:
• Test individual functions in isolation.

• Test-driven development (TDD): Focus on writing maintainable, simple, and decoupled code.

• Integration Tests:

• Test the correct behavior when combining modules.

• Validate only functional correctness.

• Validation Tests:

• Test compliance with specifications.

• Test other characteristics: performance, security, etc.

• Acceptance Tests:

• Validate requirements with the client.

• Regression Tests:

• Ensure that fixed bugs do not reappear.

Black-Box and White-Box Testing

Black-Box Testing (Functional)

• Tests are generated from specifications.
• Uses assumptions different from the programmer's.
• Tests are independent of implementation.
• Difficult to find programming defects.

White-Box Testing (Structural)

• Tests are generated from source code.
• Maximizes coverage by testing all code branches.
• Difficult to find omission or specification errors.

Both approaches are complementary.

What to Test?

• Running the program on all possible inputs is too costly.
• Choose a subset of inputs:
• Partition inputs into equivalence classes to maximize coverage.
• Test all code branches.
• Test edge cases.
• Test invalid cases.
• Test combinations (experimental design).

Example of Partitioning (1/3)

Specification

/* compare returns:
 *   0 if a is equal to b
 *   1 if a is strictly greater than b
 *  -1 if a is strictly less than b
 */
int compare (int a, int b);

What inputs should be tested?

Equivalence Classes (2/3)

Variable	Possible Values
a	{positive, negative, zero}
b	{positive, negative, zero}
result	{0, 1, -1}

Example Test Cases

a	b	result
10	10	0
20	5	1
3	7	-1
-30	-30	0
-5	-10	1
...	...	...

It is possible to select a subset of classes!

Boundary Tests (3/3)

a	b	result
-2147483648	-1	-1

Discussion

• Automatic test generation.
• Test coverage calculation.
• Mutation testing.
• Fuzzing.
• Importance of using automated testing tools.
• Importance of using continuous integration tools.

Unity Test Framework

Introduction to Unity

Unity Test Framework

• Lightweight and simple unit testing framework for C.
• Designed for embedded systems but can be used in any C project.
• Provides a set of macros and functions to define and run tests.

Setting Up Unity

• Separate Unity tests into a separate directory, e.g., tests/.

• Include the Unity header in your test files:

#include "unity.h"

• Requires linking against the Unity library
• We will link against a static library libunity.a, since Unity uses CMake, we will use FetchContent to add it to our projects.

Writing Tests

• test_functions use TEST macros provided by Unity to assert conditions.

void test_function_name(void) {
    ...
    TEST_ASSERT_EQUAL_INT(expected, actual);
    TEST_ASSERT_NOT_NULL(pointer);
    TEST_ASSERT_TRUE(condition);
    ...
}

• Reference for all assertions: Unity Assertions

Example: testing our linked list

#include "unity.h"
#include "buggy.h"
void test_delete_single_node(void) {
    struct Node *head = init_list(1);
    TEST_ASSERT_NOT_NULL(head); // head should not be NULL
    TEST_ASSERT_EQUAL_INT(0, head->val); // head should be 0
    delete(head); // should not crash
    TEST_ASSERT_NULL(head); // head should be NULL after deletion
}
void test_delete_multiple_nodes(void) {
    struct Node *head = init_list(5);
    TEST_ASSERT_EQUAL_INT(4, head->val); // head should be 4
    TEST_ASSERT_EQUAL_INT(3, head->next->val);
    delete(head); // should not crash
    TEST_ASSERT_NULL(head); // head should be NULL after deletion
}

Running Tests

• Create a test runner function to execute all tests:

int main(void) ## Boundary Tests{
    UNITY_BEGIN();
    RUN_TEST(test_function_name);
    ...
    return UNITY_END();
}

SetUp and TearDown

• SetUp and TearDown functions can be defined to run before and after each test.

void setUp(void) {
    // Code to run before each test
}

void tearDown(void) {
    // Code to run after each test
}

Code Coverage with unit tests

• Use gcov or llvm-cov to measure code coverage of your tests.
• Compile your code with coverage flags:

gcc --coverage -g -O0 -o test_runner test_runner.c my_code.c -lunity

• gcov instruments the basic blocks of code to record what is executed during tests.

• gcovr generate HTML reports showing which parts of the code were covered by tests.

Documentation with Doxygen

• Doxygen is a documentation generator for C, C++, and other languages.
• It extracts comments from the source code and generates documentation in various formats (HTML, LaTex, etc.).
• Use special comment blocks to document functions, parameters, return values, and more.
• Example of a documented function:

/**
 * @brief Initializes a linked list with n nodes.
 * @param n Number of nodes to create.
 * @return Pointer to the head of the linked list
 * @return NULL if memory allocation fails.
 */
struct Node *init_list(int n);

• Generate documentation using the doxygen command with a configuration file (Doxyfile).

Credits and Bibliography

• Course "Automated Software Testing," Sébastien Bardin.
• CMake Tutorial
• CMake Best Practices
• Unity Test Framework
• Valgrind
• GDB
• ASAN/UBSAN
• Doxygen
