Lab 5: Experimental Methodology and Scientific Reporting

The Kepler space telescope monitors the variation in the luminosity of distant stars using a photometer. The datasets are freely available online, and we will use them as a case study for this lab.

Processing Example

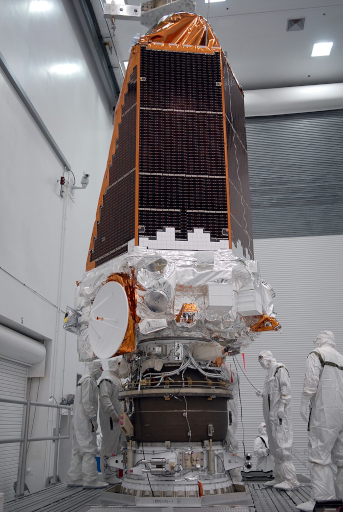

Kepler space telescope shortly after the assembly
(NASA/Troy Cryder)

Kepler generates relatively simple datasets: a photon flux (the intensity of the received light) at specific dates for a particular stars. However, by carefully preprocessing this data and using specialized signal analysis techniques, we can make major discoveries.

0 - Report

Take a look at report.md. You should complete this report as you go along the lab. Below is a short description on what is expected in each section:

  • 1) Environment and context
    • Give details on the machine you used for the experiments: CPU/Memory specifications, compiler version, python version, OS name and version, and any other details that helps characterize your setup.
      • You can use lscpu, free -h, python --version, gcc --version, ...
    • A brief description of the context of BLS, the kepler datasets, etc.

  • 2) Kepler result

    • Include both a lightcurve plot and a phase-folding plot for Kepler 8.
    • A single figure that includes a periodogram for all the provided Kepler datasets.

  • 3) Profiling results

    • Generate stability plots using ./scripts/stability.py and include them in the report.
    • If your machine supports RAPL measurement: Give the approximate energy consumption of the BLS algorithm on the Kepler 8 dataset.
    • If your machine does not support RAPL measurement:
      • State this explicity in your report.
      • Try on another machine if possible
      • ... OR replace this experiment by a weak scaling plot if you can't get RAPL to work.
    • Give the perf results for instructions,cycles,cache-references,cache-misses of bls(...) on the Kepler-8 dataset.
    • Include the strong scaling plot

Provided files

Path Description
data/ Pre-processed Kepler dataset for this lab
libbls/ Box Least Square (BLS) Python library for transit detection. (CMake)
scripts/ Python/bash scripts for plotting and data analysis that you will have to complete during the lab
setup_env.sh Helper script to setup the python environment and various env. variables
build_library.sh Helper script to run CMake for the BLS library

1 - Plotting and data analysis

Kepler generates time-series, that is data indexed by a timestep. First, look at the data inside data/Kepler-8_light_curve.csv. The time column denotes the time in days since the satellite reference. The flux column is the normalized measured luminosity of the Kepler 8 star at a given date.

a) Setup python

Run the following:

Setup bash environment
source ./setup_env.sh

b) Plot the evolution of luminosity

Write a scripts/plot_luminosity.py script that:

  • Can be called with ./scripts/plot_luminosity.py ./results kepler-* where * is an id (i.e., kepler-8, kepler-17, etc.)
  • Fetches the corresponding dataset in data/
  • Plots the dataset using matplotlib (x: Time (days), y: Flux)
  • Save the plots as results/luminosity_kepler-*.png

Ensure the script is executable using chmod +x <file> and that the file starts with the shebang #!/usr/bin/env python3

Tip

Ensure that the results folder exists before saving to it. You can use os.makedirs(<path>, exists_ok=True) in your script.

c) Run the previous script for the Kepler 8 dataset. What do you observe ?

d) Refine your previous plot

Make sure that:

  • The axes are clearly labeled
  • The x and y ticks are easily readable and properly spaced (np.linspace)
  • The plot includes a title, legend, and uses a tight or constrained layout.
  • The figure has an appropriate aspect ratio (width to height)

The final plot could look something like this:

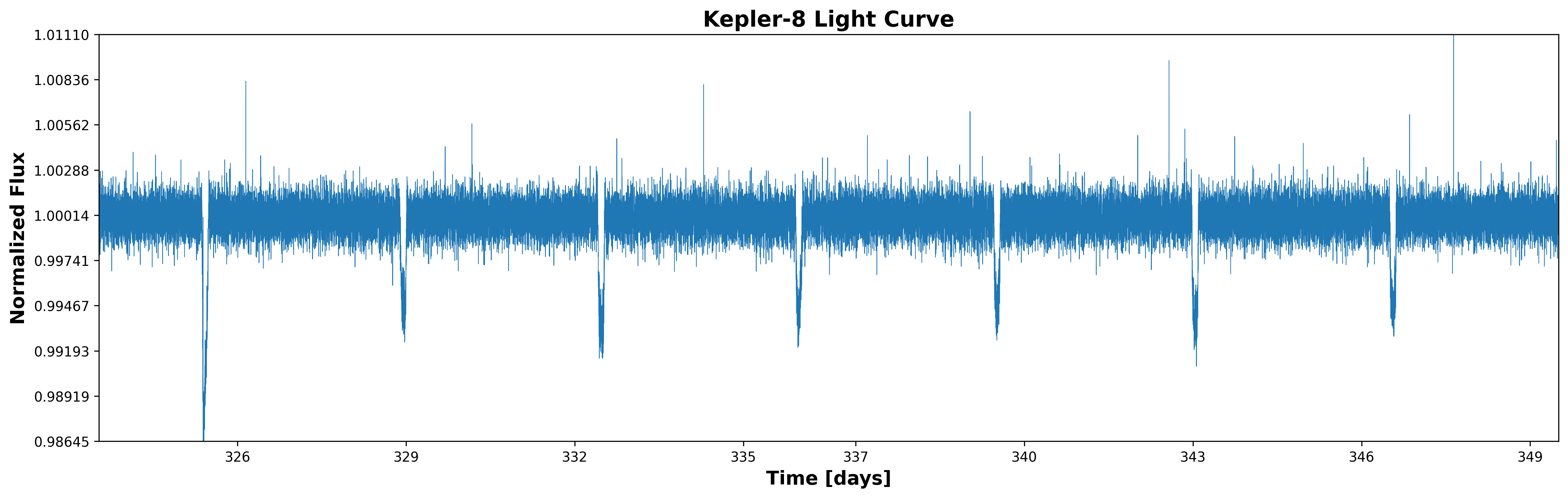

Kepler 8 Light curve
Kepler 8 Light curve

e) Give a possible explanation for the periodic dips in luminosity

On the previous light curve, we observe that the luminosity appears to "dip" sharply at regular intervals. What could cause this periodic phenomenon ?

Note

Remember that the "flux" variable is the observed light intensity for a given star, from the telescope point of view.

f) Implement phase folding light curve

Phase folding is a simple technique to visualize periodic signals: we fold the data over a given period so that the signals overlap, highlighting patterns.

Phase Folding
# Load the data here using pandas, store in a `data` variable
# Period to fold over
period = 0.8

 # We phase by the period, and divide by period to go in the [0, 1] range
phase = (data["time"] % period) / period
phase = phase - 0.5 # Center the phase
sort_idx = np.argsort(phase)
phase_sorted = phase[sort_idx]
flux_sorted = data["flux"].iloc[sort_idx]

phase = np.concatenate([phase_sorted, phase_sorted+1]) # Double plotting to improve visualization
flux = np.concatenate([flux_sorted, flux_sorted])

# Combine everying back to a DataFrame for plotting !
df = pd.DataFrame({"phase": phase, "flux": flux})

Implement a scripts/phase_folding.py script that plots the phase-folded light curve (x: phase, y: flux).

It should be used like so: ./scripts/phase_folding.py ./results kepler-* <period>.

Optionally, you can also plot a binned mean on top of the phase-folded light curve:

Phase folding: Binning
from scipy import stats
bins = 200
# Here, we bin the data using 200 bins. In each bin, we compute the mean flux.
bin_means, bin_edges, _ = stats.binned_statistic(phase, flux, statistic='mean', bins=bins)
# We compute the x coordinate of each bins, by taking the center point
bin_centers = (bin_edges[:-1] + bin_edges[1:]) / 2
ax.plot(bin_centers, bin_means, color="red", lw=1.5)

h) Run the previous script by phase folding over the Kepler 8b Period (koi_period).

Check the file data/kepler-8_known_planets.json. This json contains information about the lonely Kepler 8b exoplanet, in the Kepler 8 star system. This exoplanet orbits its parent star every 3.52 days.

  • What do you observe ?
  • Does the light "dips" overlap or is your plot noisy?
  • What can we say about the relationship between the light "dips" and Kepler 8b orbit ?
  • Draw a simple diagram describing what's happening during the light dips.
    • (Optionnal) Draw a sad emoji face on Kepler 8b, because she's alone, in a vast, vast universe.

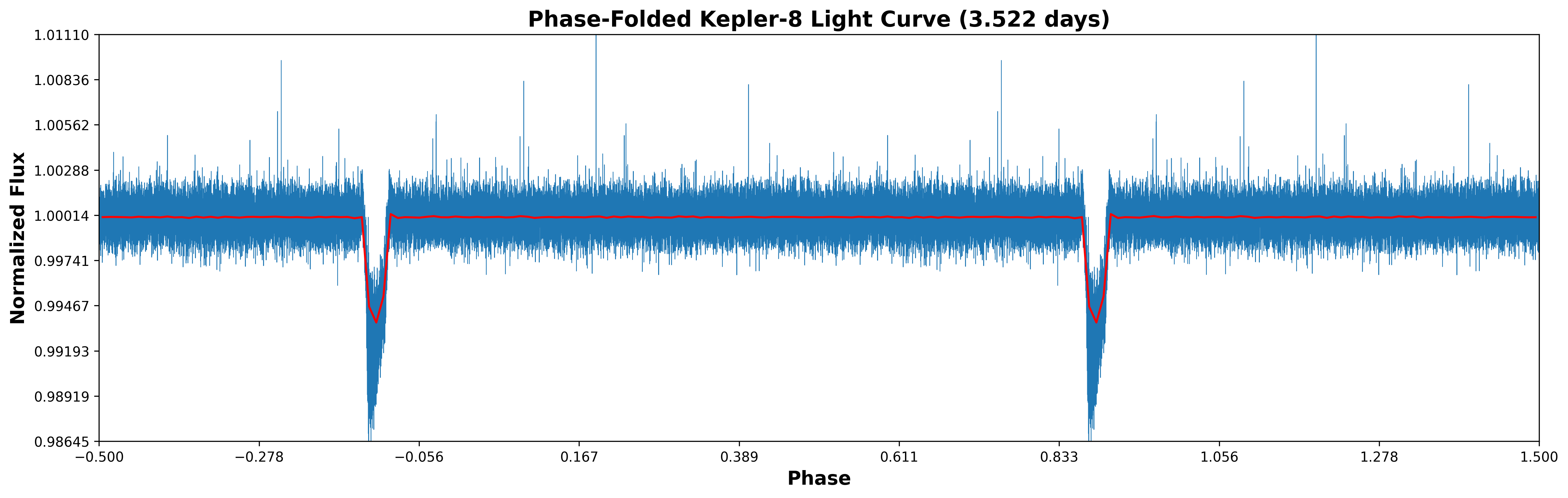

Phase folded Kepler 8 Light curve
Phase folded Kepler 8 Light curve

2 - Box Least Square

The Box Least Square (BLS) signal processing algorithm is used to detect the transit of exoplanets in front of their stars by searching for characteristic box-shaped dips in the luminosity at regular frequency.

The provided library implements a Python <-> C interface so that you can call BLS from a Python script. It also simplifies the loading and manipulation of the data, which can be done in Python, while the C code focuses on high-performance analysis.

a) Run the provided build_library.sh script

b) Write a scripts/run_bls.py script for kepler data

The BLS library can be used like so:

run_bls.py
import bls
# ... Load data here
match = bls.bls(data["time"].values.astype(np.float64), data["flux"].values.astype(np.float64),
    1.0, 4, 250, 0.02, 0.15, 100)
BLS is very sensitive to the hyperparameters, so you must use the ones provided here.

Ensure that your script can be called with scripts/run_bls.py kepler-* where * is an id (i.e., kepler-8, kepler-17, etc.), and that it reports the BLS match. Check that the BLS output is consistent with the characteristics of the Kepler 8b exoplanet.

c) Build a periodogram

The BLS algorithm scans through a range of Orbital Periods, and computes a Power score for each candidates. The higher the power, the better the candidate.

The function bls.bls_periodogram(...) returns a 2D array containing all the scores, which allows us to build a Periodogram. Pairs are stored as (Power, Period).

  • Take a look at scripts/periodogram.py and understand the provided code snippets
  • Plot a periodogram for Kepler 8, 17, 45 and 785. You are required to use subplots so that all periodograms are on the same figure. Feel free to lookup "BLS Periodogram" online to get an idea of the target results.
  • Note that you should use the same arguments for bls.bls_periodogram(...) that the ones used for bls.bls(...).
  • Save the resulting plots as results/all_periodograms.png

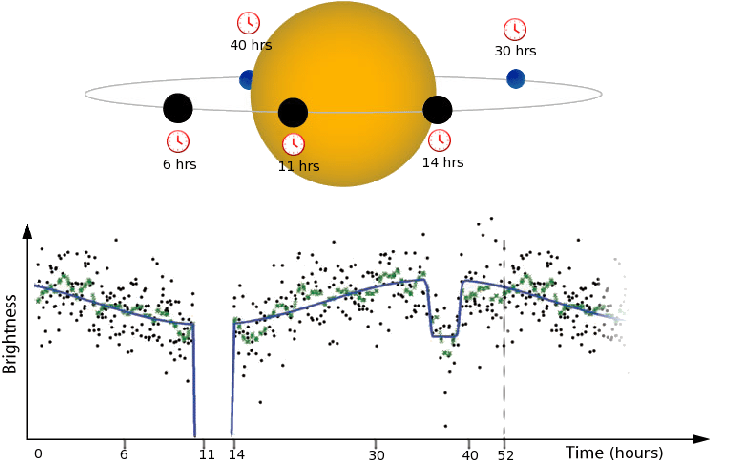

Principle behind the Kepler exoplanet detection system.
Principle behind the Kepler exoplanet detection system
Hannah R. Wakeford, Laura C. Mayorga
Characterizing the Dynamics and Chemistry of Transiting Exoplanets with the Habitable World Observatory (2025)

d) Look at libbls/src/pybls.c and try to understand how we are interfacing Python with C code

py_bls interface
static PyObject *py_bls(PyObject *self, PyObject *args) {
  PyArrayObject *t_arr, *f_arr;
  double Pmin, Pmax, qmin, qmax;
  int Np, Nq;

  if (!PyArg_ParseTuple(args, "O!O!ddiddi", &PyArray_Type, &t_arr, &PyArray_Type, &f_arr, &Pmin,
                        &Pmax, &Np, &qmin, &qmax, &Nq))
    return NULL;

  int N = (int)PyArray_DIM(t_arr, 0);
  double *t = (double *)PyArray_DATA(t_arr);
  double *f = (double *)PyArray_DATA(f_arr);

  BLSResult res = bls(t, f, N, Pmin, Pmax, Np, qmin, qmax, Nq);

  return Py_BuildValue("{s:d,s:d,s:d,s:d,s:d}", "period", res.period, "duration", res.duration,
                       "phase", res.phase, "depth", res.depth, "power", res.power);
}

When we call bls.bls(...) from Python, all arguments are redirected to this C function. The PyObject self and args pointers are structures containing the arguments of the function.

The PyArg_ParseTuple(...) call is used to "unfold" the Python arguments into C variables. The string O!O!ddiddi defines how the arguments should be interpreted:

  • d for double
  • i for integers (32bits int)
  • O! for objects (Here numpy arrays). Note that the ! qualifiers adds a type check: the runtime would raise an error if the received object wasn't a PyArray_Type.

PyArray_DIM and PyArray_DATA are used to convert Python/Numpy arrays to C usable pointers and size pairs.

The Py_BuildValue(...) call does the exact inverse process and builds Python values from C variables.

Finally:

Hooking up C with Python
static PyMethodDef BlsMethods[] = {
    {"bls", py_bls, METH_VARARGS, "Run the BLS algorithm."},
    {"bls_periodogram", py_periodogram_bls, METH_VARARGS, "Compute the BLS periodogram."},
    {NULL, NULL, 0, NULL}};

static struct PyModuleDef blsmodule = {PyModuleDef_HEAD_INIT, "pybls", NULL, -1, BlsMethods};

PyMODINIT_FUNC PyInit_bls(void) {
  import_array();
  return PyModule_Create(&blsmodule);
}

Here, we create an array containing all the functions we want to make available from python. We then declare a Python module and a PyInit_bls(void) function, that will be called by Python to load/initialize the module at runtime.

3 - Profiling for energy and performance characterization

1. Measuring Energy

a) Check the value of perf event paranoid

By default, the Linux kernel restricts access to some perf counters to prevent malicious usage. Check the value of the paranoid flag:

Perf event paranoid
cat /proc/sys/kernel/perf_event_paranoid

Possible values are:

  • -1 -> unrestricted. All counters can be used system-wise.
  • 0 -> All counters can be used on your own processes
  • 1 -> Limited access to CPU counters
  • 2 -> Only basic access

For this lab, we want perf_event_paranoid to be set to -1 so we can access the RAPL counters.

b) Disable perf event paranoid

The following command will set perf_event_paranoid to be set to -1.

However, you need sudo (admin rights) on your machine.

Perf event paranoid
sudo sh -c 'echo -1 > /proc/sys/kernel/perf_event_paranoid'

If the command fails (because you don't have sudo permissions) and perf_event_paranoid is not set to -1, you will not be able to proceed in this section. Skip to section 3.2 (Measuring performance metrics).

c) Checking availability of RAPL counters

Run the following:

Checking for RAPL perf events
perf list | grep "energy-pkg"
  power/energy-pkg/                                  [Kernel PMU event]

If you don't see the power/energy-pkg line, this probably means that RAPL energy measurement isn't supported on your machine. Skip to section 3.2 (Measuring performance metrics).

c) First energy measure

What does the following command do ?

Idle Energy Consumption
perf stat -a -j -e power/energy-pkg/,power/energy-cores/ sleep 60

Ensure your machine is mostly idle and execute this command.

Danger

Classical hardware counters, like instructions, are per-process, whereas RAPL is system-wide: RAPL captures energy consumption for all processes currently running, not specifically by our application !

d) What does energy-pkg measure, and what's the unit ? What about the other event(s) ?

Compute your machine idle power consumption:

\[ P_{idle} = \frac{\mathrm{energy{\text -}pkg}_{idle}}{t} \]

Where \(\mathrm{energy{\text -}pkg}_{idle}\) is in Joules, and \(t\) is in seconds. This is the average power consumed by the CPU package while the machine is idle, in watts

e) Measure the BLS algorithm energy consumption

Workload Consumption
time perf stat -r 5 -a -j -e power/energy-pkg/,power/energy-cores/ \
    ./scripts/run_bls.py kepler-8

Note that the -r 5 flag causes perf to perform five meta-repetitions. The time command reports the sum of the timings for all runs. Calculate the effective power and energy consumption for BLS.

\[ P_{effective} = \frac{\mathrm{energy{\text -}pkg_{BLS}}}{t_{BLS}} - P_{idle} \]

2. Measuring performance metrics

What does the following command do ?

Measuring performance
time perf stat -r 5 -e instructions,cycles,cache-references,cache-misses \
    ./scripts/run_bls.py kepler-8

Execute this command and answer the following questions.

a) What's the observed variability in the execution time ?

b) What's the mean instructions / cycle ?

c) Is the application compute or memory intensive ?

In summary:

  • Memory-intensive applications have low instructions per cycle and high memory metrics
  • Compute-intensive applications are vectorized (high instructions per cycle) and fully utilize threads. Memory usage is relatively low because the arithmetic density is high.

d) What is costlier: running the BLS algorithm, or loading the dataset ?

Run the following:

Perf Record
perf record -g -- python3 ./scripts/run_bls.py kepler-8
perf report

You can move around the perf report using the arrow keys, and you can press + to expand a particular call tree.

How much time is spent in the BLS algorithm ?

Which would be more time-efficient for an engineer: optimizing the data loading process or optimizing the BLS algorithm?

3. Strong scaling analysis

Take a look at scripts/strong_scaling.py. It contains a code snippet for running the scripts/run_bls.py script with a given number of threads. Our goal is now to build a strong scaling plot.

a) Look and try to understand the purpose of the scripts/stability.py script

What are we measuring ? What information does this script provide about our environment?

b) Modify stability.py to measure the stability of run_bls.py

To further assess the stability of our setup, we should try to measure the distribution of multiple runs of run_bls.py

Modify the script to:

  • Load the kepler 8 Dataset, and subsample it (Reduce the size to ~2k randomly selected samples)
    • Be sure to sort the dataset after subsampling by using df.sort_values(by="time") !
  • Save the previous dataset, and execute run_bls.py on the subsampled dataset, measuring the time.
  • Repeat the previous measurements approximately 100 times, and generate a distribution plot using seaborn. You can use a boxplot, kdeplot, violin plot, histogram, etc. Save the raw data to results/stability_bls.csv

If your machine is stable, the performance distribution should follow a normal distribution.

Examples of different distribution plots.
Examples of different distribution plots.
The stability results here were gathered on a laptop that was in-use, thus the measures are quite unstable.

c) Modify scripts/strong_scaling.py to build a strong scaling plot

Save the plot to results/<date>/strong_scaling.png where date is obtained via:

Formatting a timestamp
import time
date = time.strftime("%Y_%m_%d-%H_%M_%S") # e.g. 2025_08_28-12_08_40
os.makedirs(f"results/{date}/", exist_ok=True)

5 - Summary

Upon completing this fifth lab, you should know how to:

  • Build simple plots using python and matplotlib
  • Improve a plot with titles, labels, formatting
  • Manipulate simple data formats (csv, json)
  • Use perf for measuring energy and performance hardware counters
  • Use perf sampling profiler to understand an application hotspots
  • Organise a report around data analysis
