Lab 4: Monte-Carlo Sampling¶
Monte-Carlo methods are useful for approximating quantities that are difficult or computationally expensive to determine analytically or through deterministic algorithms. These methods introduce randomness into the computations in order to obtain a statistically meaningful estimate over multiple repetitions of the same routine.

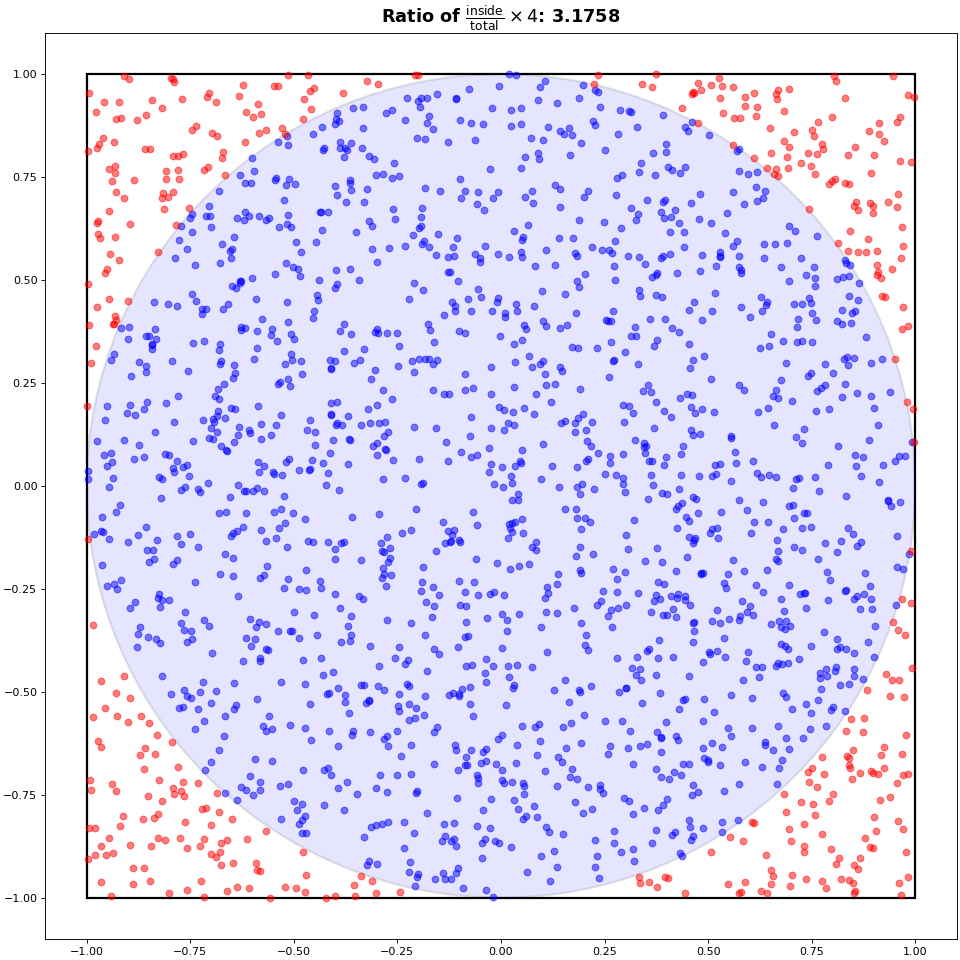

In this lab, we explore the approximation of π using Monte-Carlo sampling. To do this, we consider a unit circle (radius 1) inscribed within a square of side length 2, centered at the origin. By generating random points uniformly within the square and counting how many fall inside the circle, we can estimate the ratio of the areas of the two shapes.
Since the area of the circle is \(\pi \cdot r^2 = \pi\), and the area of the square is 4, we expect the ratio of points falling inside the circle to converge to \(\pi / 4\).
1 - Implementing the MC Method¶
Implement your own version of the \(\pi\) estimator inside src/compute_pi.c using the Monte-Carlo method. This method receives \(n\) the number of Monte-Carlo samples to take as arguments, and must return the approximation of \(\pi\) in double precision.
Build your program using make and validate your implementation. The program can be run using:
2 - Timing and serialization¶
1. Implementing timing¶
a) Modify the function src/main.c:mc_harness(...) to measure the execution time of your method.¶
You must repeat the measurements nmeta times, and record the values of Pi as well as the execution time for each execution.
What function did you use to measure time? How accurate is it? Is it monotonic?
b) Modify the function src/main.c:print_results(...) to print a table with the following values:¶
| Avg. Pi | Std Pi | Avg. Time | Std Time | Min Time | Max Time |
|---|---|---|---|---|---|
| Average Value of Pi | Standard Deviation of Pi | Average execution time | Standard Deviation of execution time | Min execution time | Max Execution time |
You may need to modify other functions or the provided structures to achieve this.
c) Implement csv serialization inside the program.¶
You must exactly match this format and header:
Print at least 10 decimals, and ensure that the file is saved in the path provided by the user.
Check that you can run the following:
# Run MC Pi Estimator with 1 Million sample, 2048 meta-repetitions and save the results in results.csv
./piestimator 1000000 2048 results.csv
Warning
The following questions will reuse this CSV serialization. Be sure that you match exactly the prescribed format. Be careful not to introduce blank spaces in the header name (e.g. NMeta,Pi,Time rather than NMeta, Pi, Time)
2. Run the provided experiments¶
If you correctly implemented csv serialization, this will generate plots inside the results folder.
a) First, look at the top figure in convergence.png¶
What do you observe? How does the error evolve when increasing the number of Monte-Carlo samples?
If needed, fix your program so that the relative error converges toward zero.
b) Look at the bottom figure: how does execution time evolve when increasing the number of samples?¶
If needed, fix your program so that the execution time scales linearly with the number of samples.
c) Look at the top figure in stability.png¶
How are the values of the Pi estimations distributed? Is there any bias, and if so, why? If needed, fix your program so that the Pi estimations are normally distributed around 3.14.
d) Look at the bottom figure: how is the execution time distributed?¶
Check whether the timings are stable, and if not, propose an explanation. Do you observe any measurement noise? How would you characterize it?
If needed, fix your measurements so that the execution time is mostly normally distributed, and the measurement noise is tolerable.
Tip
The results/expected_results folder contains examples of plots that were run on a stable machine, with a correct implementation of the Monte-Carlo estimator.
2.5 - (Going-Further) Understanding the scripts¶
1. Look at run_all.sh, and try to understand each line.¶
a) What does set -e, set -o pipefail and 2>&1 | tee ... do?¶
b) What is the purpose of the run_label argument (Why should we label our data)?¶
What files are generated, and what's the purpose of every one of them?
2. Look at scripts/analyse.py and try to understand how each plot is built.¶
Try to link every components of convergence.png and stability.png (The titles, the axis label, the axis ticks, the distributions, the grid, ...) with the code that generates it.
3 - Optimization¶
1) Setting up Makefile¶
a) Modify the makefile and play around with compilation flags and different compilers.¶
Remember that you can run run_all.sh <run_label> to compare the different runs later.
What configuration gives you the fastest execution time? Can you understand why?
2. Use OpenMP to parallelize your Monte-Carlo algorithm.¶
You may need to modify the makefile to link to OpenMP.
a) How are you generating random numbers in the sampling algorithm?¶
- Read the fourth paragraph in the description section of the
rand/srandman page usingman 3 srandor the online version. - If necessary, research thread-safe alternatives.
b) Where did you implement parallelization?¶
- Are you averaging multiple Pi values from separate runs, or
- Are you summing the counts of points inside the circle across threads?
- Does each thread accumulate its count in a private variable?
- If you accumulate in a shared variable, do you protect it using mutexes, locks, or OpenMP critical sections?
c) Do you see any performance gains compared to the sequential version?¶
d) Rerun the provided experiments, and compare with your previous sequential result.¶
Is your program faster using OpenMP? If not, ensure you are correctly running multiple threads.
e) Is the performance stable? Is there any impact on the accuracy of your estimator?¶
If performance is unstable, investigate thread affinity and how to bind threads to specific cores.
On Intel CPUs, check if your processor has Performance (P) and Efficiency (E) cores, as this can affect timing consistency.
e - Bonus) For students with an heterogeneous CPU (Efficiency (E) Cores and Performance (P) Cores)¶
Using both E and P cores can introduce instabilities in your measurements, load balancing issues, and should be avoided.
Run the following to check your CPU topology:
lscpu --all --extended
# CPU NODE SOCKET CORE L1d:L1i:L2:L3 ONLINE MAXMHZ MINMHZ MHZ
# 0 0 0 0 0:0:0:0 yes 5100.0000 800.0000 800.0000
# 1 0 0 0 0:0:0:0 yes 5100.0000 800.0000 800.0000
# 2 0 0 1 4:4:1:0 yes 5100.0000 800.0000 800.0000
# 3 0 0 1 4:4:1:0 yes 5100.0000 800.0000 800.0000
# 4 0 0 2 8:8:2:0 yes 5100.0000 800.0000 800.0000
# 5 0 0 2 8:8:2:0 yes 5100.0000 800.0000 800.0000
# 6 0 0 3 12:12:3:0 yes 5100.0000 800.0000 800.0000
# 7 0 0 3 12:12:3:0 yes 5100.0000 800.0000 800.0000
# 8 0 0 4 16:16:4:0 yes 5300.0000 800.0000 843.1520
# 9 0 0 4 16:16:4:0 yes 5300.0000 800.0000 800.0000
# 10 0 0 5 20:20:5:0 yes 5300.0000 800.0000 2329.4590
# 11 0 0 5 20:20:5:0 yes 5300.0000 800.0000 800.0000
# 12 0 0 6 24:24:6:0 yes 5100.0000 800.0000 800.0000
# 13 0 0 6 24:24:6:0 yes 5100.0000 800.0000 800.0000
# 14 0 0 7 28:28:7:0 yes 5100.0000 800.0000 800.0000
# 15 0 0 7 28:28:7:0 yes 5100.0000 800.0000 800.0000
# 16 0 0 8 32:32:8:0 yes 3800.0000 800.0000 800.0000
# 17 0 0 9 33:33:8:0 yes 3800.0000 800.0000 842.6700
# 18 0 0 10 34:34:8:0 yes 3800.0000 800.0000 799.7680
# 19 0 0 11 35:35:8:0 yes 3800.0000 800.0000 800.0000
# 20 0 0 12 40:40:10:0 yes 3800.0000 800.0000 800.0000
# 21 0 0 13 41:41:10:0 yes 3800.0000 800.0000 800.0000
# 22 0 0 14 42:42:10:0 yes 3800.0000 800.0000 800.0000
# 23 0 0 15 43:43:10:0 yes 3800.0000 800.0000 800.0000
# 24 0 0 16 44:44:11:0 yes 3800.0000 800.0000 799.0440
# 25 0 0 17 45:45:11:0 yes 3800.0000 800.0000 800.0000
# 26 0 0 18 46:46:11:0 yes 3800.0000 800.0000 800.0000
# 27 0 0 19 47:47:11:0 yes 3800.0000 800.0000 800.0000
You should be able to see that some cores have a higher Max Frequency (MAXMHZ) than other: those are typically performance cores.
If you have hyperthreading enabled, you should also see that some cores share the same "core id": classically, only performance cores have hyperthreading enabled.
From the previous output, we can deduce that cores 0-15 are P-cores and that hyperthreading is enabled.
As such, we can run the following command to change the thread affinity of our shell to only use physical cores:
# Adjust the core list based on your actual topology
taskset -cp 0,2,4,6,8,10,12,14 $$
# You can also use `hwloc-ls` or `lstopo` (from hwloc) for a visual map of your CPU topology.
From now on, all the executable run in this shell will inherit this thread affinity.
Feel free to create an alias for this command inside your .bashrc for future use.
You can also use the following variable for OpenMP:
f) Verify your implementation's strong scaling:¶
OMP_NUM_THREADS=1 ./piestimator 1000000
OMP_NUM_THREADS=2 ./piestimator 1000000
OMP_NUM_THREADS=4 ./piestimator 1000000
OMP_NUM_THREADS=8 ./piestimator 1000000
Does using 2 threads instead of 1 make your code twice as fast? Propose an explanation.
g) Verify your implementation's weak-scaling:¶
OMP_NUM_THREADS=1 ./piestimator 1000000
OMP_NUM_THREADS=2 ./piestimator 2000000
OMP_NUM_THREADS=4 ./piestimator 4000000
OMP_NUM_THREADS=8 ./piestimator 8000000
What results do you expect to see? Does that match your empirical observations? Propose an explanation.
5 - Summary¶
Upon completing this third lab, you should be able to:
- Explain the principle of Monte-Carlo algorithms and apply them to numerical estimation
- Implement and benchmark a Monte-Carlo estimator with statistical analysis (mean, stddev, min/max)
- Account for variability and noise in timing benchmarks
- Use OpenMP to parallelize a minimal compute-bound code and understand implications for thread safety
- Perform simple analysis of scaling behavior (strong/weak scaling)
- Understand thread affinity and hardware topology impacts on performance and timing stability
